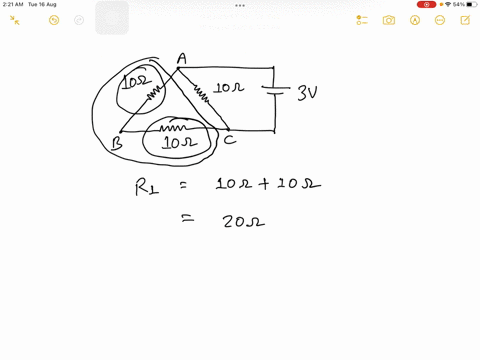

7. Find the total current in the circuit shown below E = 3 V 10 ?
Added by Mariano F.
Close
Step 1
We can do this by adding up the resistances in series and parallel. The resistors R1 and R2 are in series, so we can add their resistances together: R1 + R2 = 5 + 5 = 10 ohms Now, let's find the total resistance of R1, R2, and R3 in parallel. We can use the Show more…
Show all steps
Your feedback will help us improve your experience
Frank Deng and 86 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the total current pass through the circuit as shown in figure.
Nishant K.

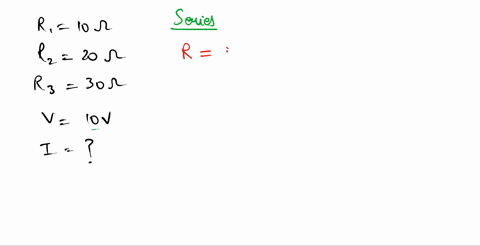

Calculate the total current in the circuit with 3 resistances in series with values 10, 20 and 30 ohm and a 10 V battery connected to it.
