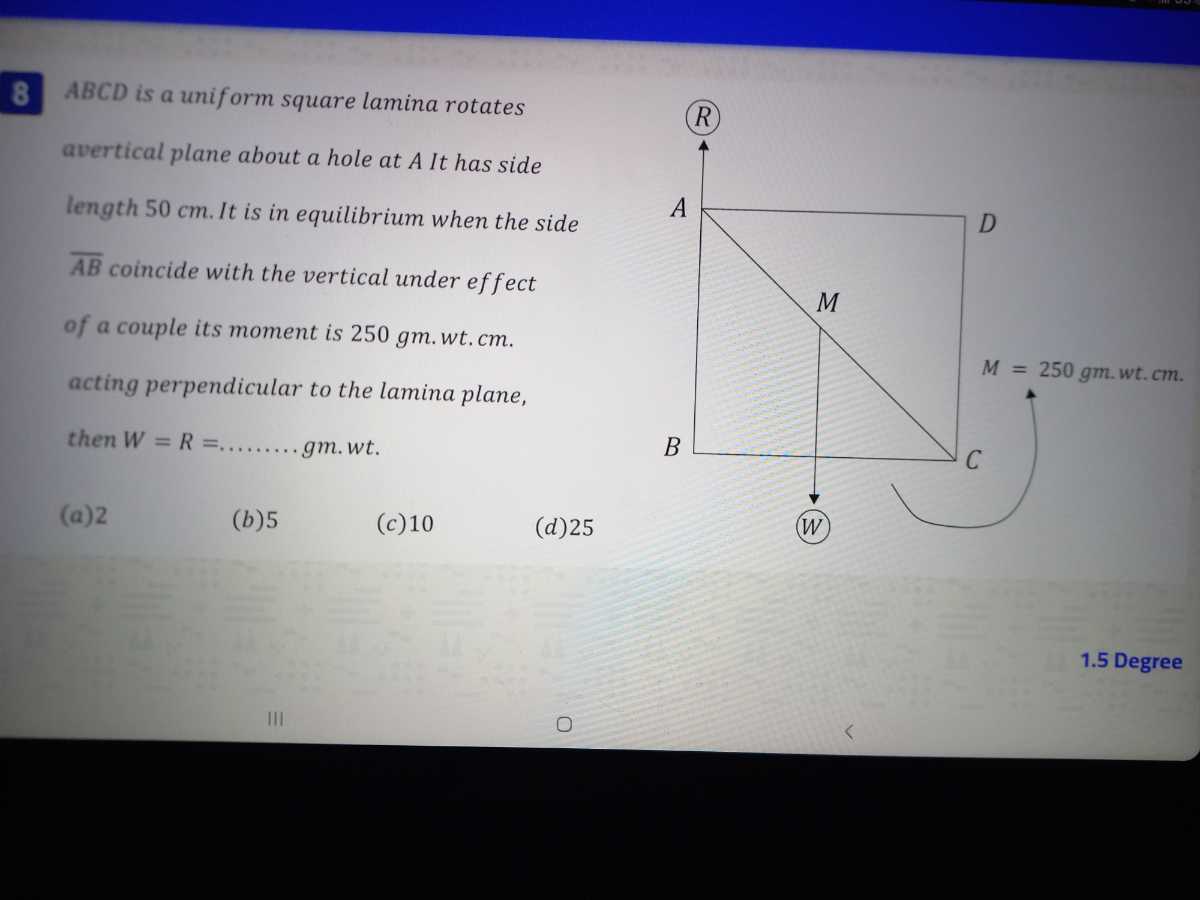

\( 8 . A B C D \) is a uniform square lamina rotates avertical plane about a hole at A It has side length 50 cm . It is in equilibrium when the side \( \overline{A B} \) coincide with the vertical under effect of a couple its moment is \( 250 \mathrm{gm} . \mathrm{wt} . \mathrm{cm} \). acting perpendicular to the lamina plane, then \( W=R=\ldots \ldots \ldots g m . w t \). (a) 2 (b) 5 (c) 10 (d) 25 1.5 Degree
Added by John D.
Close
Step 1
We have a square lamina \(ABCD\) with side length 50 cm, rotating about a hole at \(A\). It is in equilibrium when side \(AB\) is vertical, under the effect of a couple with a moment of \(250 \, \text{gm.wt.cm}\). Show more…
Show all steps
Your feedback will help us improve your experience
Gregory Devenport and 75 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A weightless rod of length $2 l$ carries two equal masses $m$, one tied at lower end $A$ and the other at the middle of the rod at $B$. The rod can rotate in vertical planc about a fixed horizontal axis passing through $C$. The rod is released from rest in horizontal position. The speed of the mass $B$ at the instant rod becomes vertical is (a) $\sqrt{\frac{3 g l}{5}}$ (b) $\sqrt{\frac{4 g l}{5}}$ (c) $\sqrt{\frac{6 g l}{5}}$ (d) $\sqrt{\frac{7 g l}{5}}$
Work, Energy, Power and Circular Motion
Section B
A uniform disk of radius $r=250 \mathrm{mm}$ is attached at $A$ to a 650 -mm rod $A B$ of negligible mass that can rotate freely in a vertical plane about $B$. If the rod is displaced $2^{\circ}$ from the position shown and released, determine the magnitude of the maximum velocity of point $A,$ assuming that the disk is $(a)$ free to rotate in a bearing at $A,$ (b) riveted to the rod at $A .$
Mechanical Vibrations
Free Vibrations of Rigid Bodies

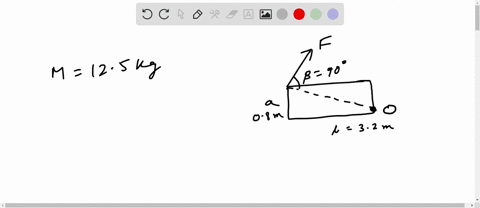

A vertical rectangular object of uniform mass M = 12.5 kg has sides a = 0.8 m and b = 3.2 m. It is pivoted from point O as shown in the figure below. If a constant force of F = 91 N along the diagonal as shown is applied, determine the angular acceleration of the rectangle at the instant shown in the figure using SI units. Express your answer with two decimal places. Please use the convention: Clockwise (+), Counterclockwise (-) when expressing your answer. Hint 1: The moment of inertia of the rectangle about an axis of rotation passing through its center of mass is I subscript CM = 1/12 M (a^2 + b^2). Hint 2: Don't forget the force of gravity!!! Take g = 9.80 m/s^2.
