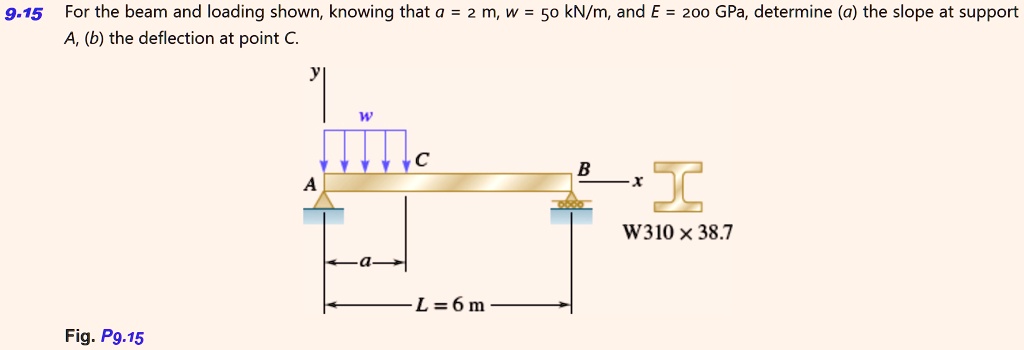

9.15 For the beam and loading shown, knowing that $a = 2$ m, $w = 50$ kN/m, and $E = 200$ GPa, determine (a) the slope at support A, (b) the deflection at point C. Fig. P9.15 A W a C B L = 6 m W310 x 38.7

Name: 915 for the beam and loading shown knowing that a 2 m w 50 knm and e 200 gpa determine a the slope at support a b the deflection at point c fig p915 a w a c b l 6 m w310 x 387 22277
Uploaded: 2024-05-17T13:31:39-08:00
Duration: 5 min 26 s
Channel: Adi S
Description: 915 for the beam and loading shown knowing that a 2 m w 50 knm and e 200 gpa determine a the slope at support a b the deflection at point c fig p915 a w a c b l 6 m w310 x 387 22277

          9.15 For the beam and loading shown, knowing that $a = 2$ m, $w = 50$ kN/m, and $E = 200$ GPa, determine (a) the slope at support A, (b) the deflection at point C.
Fig. P9.15
A
W
a
C
B
L = 6 m
W310 x 38.7

915 for the beam and loading shown knowing that a 2 m w 50 knm and e 200 gpa determine a the slope at support a b the deflection at point c fig p915 a w a c b l 6 m w310 x 387 22277

Added by Amy S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

05/17/2024

Step 1

Given data: Length of distributed load, $a = 2$ m Distributed load, $w = 50$ kN/m Modulus of Elasticity, $E = 200$ GPa $= 200 \times 10^9$ Pa Total length of the beam, $L = 6$ m Beam section: W310 x 38.7 First, we need to find the moment of inertia (I) for the Show more…
