A 10 ohm resistor, a 90 mH coil, and a 0.015 micro F capacitor are in series across an AC source. Calculate the impedance magnitude at 1,200 Hz below the resonant frequency.
Added by Julio S.
Step 1
The resonant frequency is given by: \[ f_0 = \frac{1}{2\pi\sqrt{LC}} \] where \( L = 90 \text{ mH} = 90 \times 10^{-3} \text{ H} \) and \( C = 0.015 \text{ μF} = 0.015 \times 10^{-6} \text{ F} \). \[ f_0 = \frac{1}{2\pi\sqrt{(90 \times 10^{-3})(0.015 \times Show more…
Show all steps
Close
Your feedback will help us improve your experience
Adi S and 91 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A coil of resistance 100 ohm and inductance 100*10^-6H is connected in series with a 100*10^-12 F capacitor. The circuit is connected to a 10V variable frequency source. Calculate the resonant frequency and current resonance.
Vipin K.

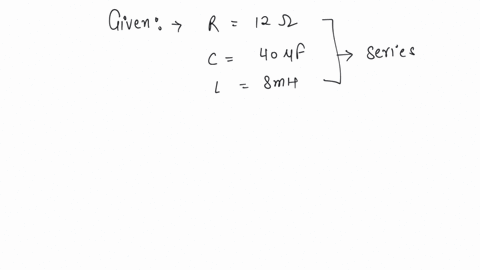

A 12 ohm resistor, a 40uF capacitor, and an 8mH coil are in series across an ac source. The resonant frequency will be ?
Kamlesh G.
Find the impedance at $10 \mathrm{kHz}$ of a circuit consisting of a $1.5-\mathrm{k} \Omega$ resistor, 5.0 - $\mu$ F capacitor, and 50 -mH inductor in series.
