A 100mH inductor, a 25 uF capacitor and a 15 ohm resistor are connected in series to a , 120V, 50Hz ac source. Impedance of the circuit at resonance will be ?
Added by Benzamin G.
Step 1
At resonance, XL = XC (inductive reactance = capacitive reactance) XL = XC 2πfL = 1 / (2πfC) 2π * 50 * 100mH = 1 / (2π * 50 * 25uF) 100π mH = 1 / (100π uF) 100π * 10^-3 = 1 / (100π * 10^-6) 100 = 1 / 100 100 = 100 Show more…
Show all steps
Your feedback will help us improve your experience
Kamlesh Goyal and 72 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A 100 mH inductor, a 20 ĂŽÂĽF capacitor, and a 10 ohm resistor are connected in series to a 100 V, 50 Hz AC source. Calculate: (i) Impedance of the circuit at resonance (ii) Current at resonance (iii) Resonant frequency.
Adi S.

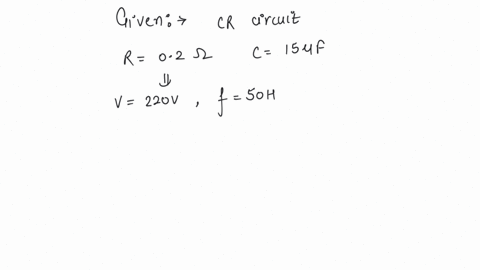

A 0.2 ohm resistor and 15 uF capacitor are connected in series to a 220 V, 50 Hz ac source. The impedance of the circuit will be ?
