A 100 mH inductor, a 20 μF capacitor, and a 10 ohm resistor are connected in series to a 100 V, 50 Hz AC source. Calculate: (i) Impedance of the circuit at resonance (ii) Current at resonance (iii) Resonant frequency.
Added by Brett J.
Step 1
We can calculate X_L and X_C using the formulas: X_L = 2 * pi * f * L X_C = 1 / (2 * pi * f * C) where f is the frequency, L is the inductance, and C is the capacitance. Given the values: L = 100 mH = 0.1 H C = 20 μF = 20 * 10^(-6) F f = 50 Hz We can calculate Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

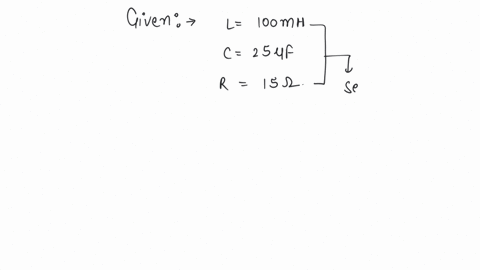

A 100mH inductor, a 25 uF capacitor and a 15 ohm resistor are connected in series to a , 120V, 50Hz ac source. Impedance of the circuit at resonance will be ?
Kamlesh G.
A coil of resistance 100 ohm and inductance 100*10^-6 H is connected in series with the 100*10^-12F capacitor . The circuit is connected to a 10V variable frequency source .The current resonant of the circuit is 0.1A and resonant frequency is 1.59*10^6 Hz.Calculate the voltage across L and C at resonance.
