A 200 v dc series motor runs at 500 rpm when taking a line current of 25 A the resistance of the armature is 0.3 ohm and that the series field 0.5 ohm if current taken remains constant calculate the resistance necessary to reduce the speed 350 rpm
Added by Michelle C.
Step 1
First, we need to find the back EMF (Eb1) at 500 rpm. We can use the formula: Eb1 = V - I * (Ra + Rse) where V = 200 V (supply voltage), I = 25 A (line current), Ra = 0.3 ohm (armature resistance), and Rse = 0.5 ohm (series field resistance). Show more…
Show all steps
Your feedback will help us improve your experience
Oluwadamilola Ameobi and 63 other Principles of Accounting educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Recommended Videos

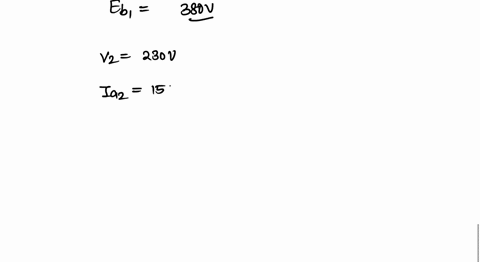

A dc shunt motor runs at 900 rpm. from a 400 V supply when taking an armature currentof 25 A. Calculate the speed at which it will run from a 230 V supply when taking anarmature current of 15 A. The resistance of the armature circuit is 0.8 ohm. Assume theflux per pole at 230 V to have decreased to 75% of its value at 400 V.
Sri K.

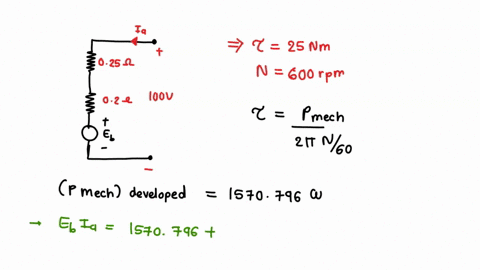

A 100- V series motor is used to drive a load through a pulley. This machine has an armature resistance of 0.2 ohm and a series field resistance of 0.25 ohm. When a torque of 25 N-m is applied to the pulley, the speed is 600 rpm. If stray power losses at this load is 300 W, calculate the armature current.

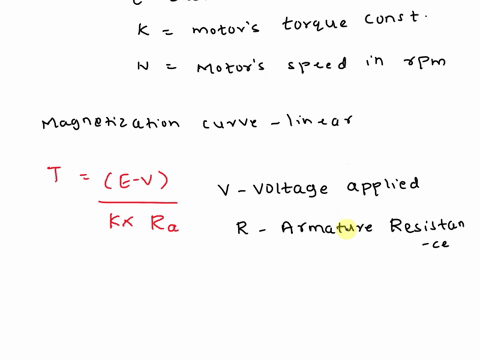

250 V d.c. Shunt motor has an armature current of 20A when running at 1000 r.p.m at full load. The armature resistanc is 0.5 ohm. What resistance must be inserted in series with the armature to reduce the speed to 500 r.p.m. Assume load torque constant and magnetization curve to be linear
