A 7 kilogram object suspended from the end of a vertically hanging spring stretches the spring 5 centimeters. At time $t = 0$, the resulting mass-spring system is disturbed from its rest state by the force $F(t) = 133 \cos(14t)$. The force $F(t)$ is expressed in Newtons and is positive in the downward direction, and time is measured in seconds. Determine the spring constant $k$. $k = 1372$ Newtons / meter Hint is to use earth gravity of 9.8 meters per second squared, and note that Newton is kg meter per second squared. Formulate the initial value problem for $x(t)$, where $x(t)$ is the displacement of the object from its equilibrium rest state, measured positive in the downward direction. Give your answer in terms of $x$, $x'$, $x''$, $t$. Differential equation: $x'' + 196x = 19 \cos(14t)$ Initial conditions: $x(0) = 0$ and $x'(0) = 0$ Solve the initial value problem for $x(t)$. $x(t) = $ Plot the solution and determine the maximum displacement from equilibrium made by the object on the time interval $0 \le t < \infty$. If there is no such maximum, enter "NONE". maximum displacement = none meters Book: Section 2.6 of Notes on Diffy Qs

          A 7 kilogram object suspended from the end of a vertically hanging spring stretches the spring 5 centimeters. At time $t = 0$, the resulting mass-spring system is disturbed from its rest state by the force $F(t) = 133 \cos(14t)$. The force $F(t)$ is expressed in Newtons and is positive in the downward direction, and time is measured in seconds.
Determine the spring constant $k$.
$k = 1372$ Newtons / meter
Hint is to use earth gravity of 9.8 meters per second squared, and note that Newton is kg meter per second squared.
Formulate the initial value problem for $x(t)$, where $x(t)$ is the displacement of the object from its equilibrium rest state, measured positive in the downward direction.
Give your answer in terms of $x$, $x'$, $x''$, $t$.
Differential equation: $x'' + 196x = 19 \cos(14t)$
Initial conditions: $x(0) = 0$ and $x'(0) = 0$
Solve the initial value problem for $x(t)$.
$x(t) = $
Plot the solution and determine the maximum displacement from equilibrium made by the object on the time interval $0 \le t < \infty$. If there is no such maximum, enter "NONE".
maximum displacement = none meters
Book: Section 2.6 of Notes on Diffy Qs

Show more…

a 7 kilogram object suspended from the end of a vertically hanging spring stretches the spring 5 centimeters at time t 0 the resulting mass spring system is disturbed from its rest state by 92353

Added by Angela L.

Calculus: Early Transcendentals

James Stewart 8th Edition

Instant Answer

Solved by Expert David Mccaslin

07/26/2022

Step 1

The weight of the object is $W = mg = 7(9.8) = 68.6$ N. The spring stretches 5 cm = 0.05 m. Hooke's law states that $F = kx$, where F is the force, k is the spring constant, and x is the displacement. In this case, $F = W = 68.6$ N and $x = 0.05$ m. Therefore, $k Show more…

Show all steps

lock

Thanks for your feedback!

A 7 kilogram object suspended from the end of a vertically hanging spring stretches the spring 5 centimeters. At time $t = 0$, the resulting mass-spring system is disturbed from its rest state by the force $F(t) = 133 \cos(14t)$. The force $F(t)$ is expressed in Newtons and is positive in the downward direction, and time is measured in seconds. Determine the spring constant $k$. $k = 1372$ Newtons / meter Hint is to use earth gravity of 9.8 meters per second squared, and note that Newton is kg meter per second squared. Formulate the initial value problem for $x(t)$, where $x(t)$ is the displacement of the object from its equilibrium rest state, measured positive in the downward direction. Give your answer in terms of $x$, $x'$, $x''$, $t$. Differential equation: $x'' + 196x = 19 \cos(14t)$ Initial conditions: $x(0) = 0$ and $x'(0) = 0$ Solve the initial value problem for $x(t)$. $x(t) = $ Plot the solution and determine the maximum displacement from equilibrium made by the object on the time interval $0 \le t < \infty$. If there is no such maximum, enter "NONE". maximum displacement = none meters Book: Section 2.6 of Notes on Diffy Qs

Play audio

Feedback

Powered by NumerAI

David Mccaslin and 57 other subject Calculus 3 educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Recommended Videos

Recommended Textbooks

Transcript

00:01 So in this problem, we have a spring with a 10 kilogram mass on it, and initially it stretches 9 .8 centimeters.

00:06 So we can kind of think about this right.

00:08 Here's a spring that's got a 10 kilogram mass hanging on it here.

00:17 Initially, it stretches when you hang the mass on there.

00:20 Then at time t equals zero, there's some force applied to it, given by f of t is 140 cosine 10t, and forces in newton's, and of course time t is at 7.

00:31 Seconds.

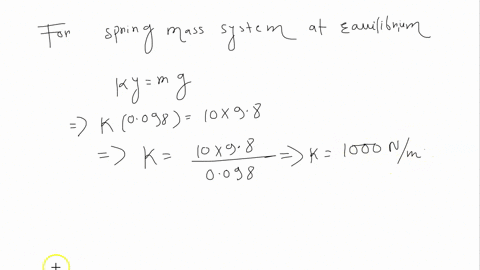

00:33 We're first asked to find the spring constant k.

00:36 Well, initially when you put that weight on there, it stretches and stops, right? so i have k times y, the displacement that it stretches is equal to mass times gravity.

00:50 Well, this displacement right here is 0 .098 meters, like there's 100 centimeters in a meter.

01:00 So this means i have k times 0 .098.

01:04 Is equal to my mass, 10 kilograms, and g, our gravitational pull, is 9 .8 newton's per meter squared, or so per, not meter squared, sorry, nons per kilogram.

01:25 All right, so that means that k is 10 times 9 .8 over kilograms cancel, over 0 .098.

01:36 And so this is 98 over 0 .098, which is 1 ,000 newtons per meter.

01:50 It is my spring gravitational constant.

01:55 My spring constant.

01:57 Okay.

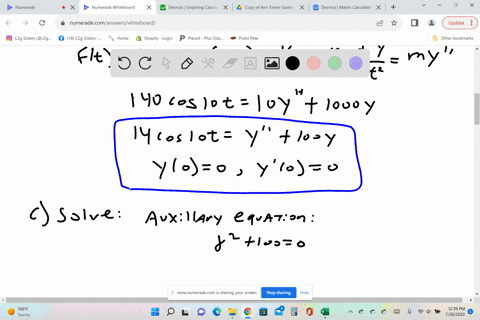

01:59 So, next we're asked to write the initial value problem with conditions.

02:22 Okay.

02:24 Well, if we consider that force is mass times acceleration.

02:31 We have f of t is equal to this 140 cosine 10t, 140 cosine of 10t, minus ky, right, my spring constant times the displacement on it.

02:58 Okay, so that's the sum of the forces.

03:00 And that's equal to mass times acceleration.

03:02 Well, acceleration is the second derivative of displacement with respect to time, which i could write this as m y double prime.

03:12 And we know k is a thousand.

03:14 So that means i have 140 cosine of 10 t is equal to my mass is 10, 10 y double prime, plus a thousand y.

03:39 I can divide everything here by 10...
