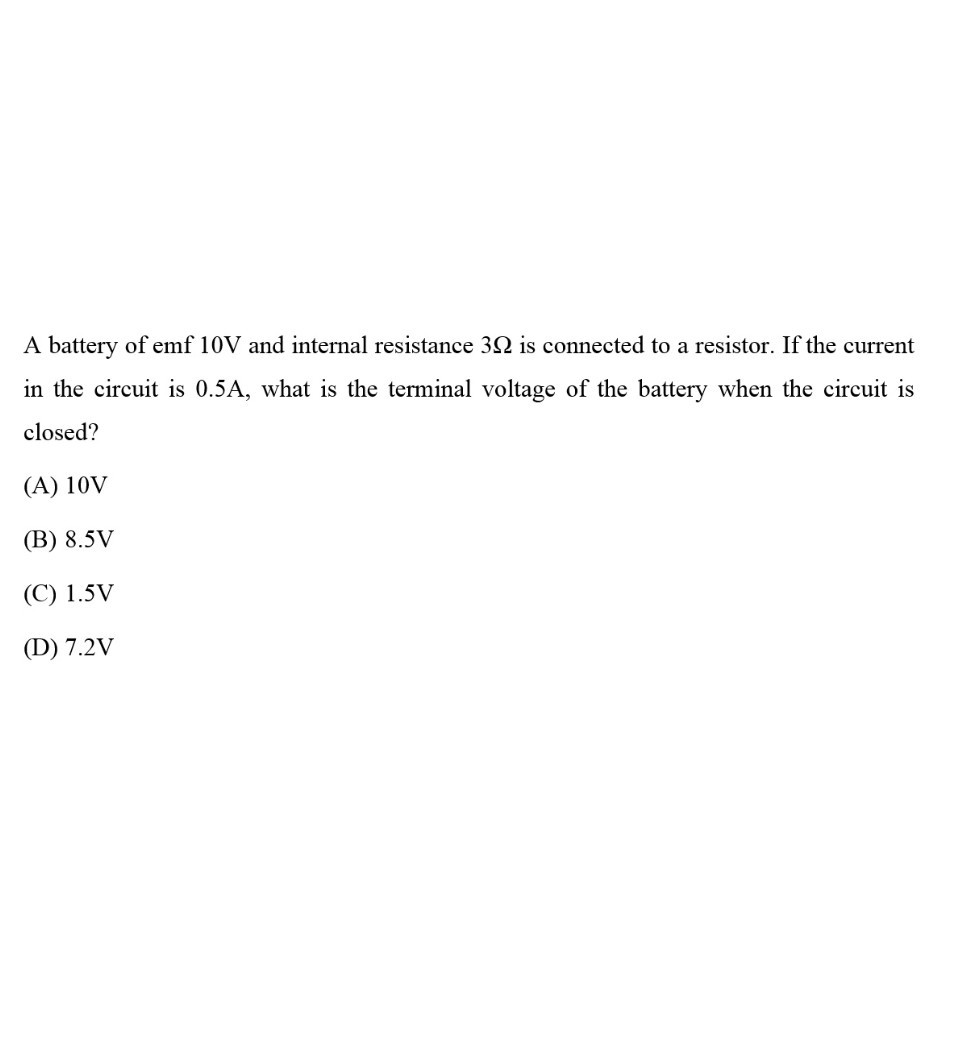

A battery of emf 10 V and internal resistance \( 3 \Omega \) is connected to a resistor. If the current in the circuit is 0.5 A , what is the terminal voltage of the battery when the circuit is closed? (A) 10 V (B) 8.5 V (C) 1.5 V (D) 7.2 V
Added by Karen F.
Close
Step 1
- Electromotive force (emf) of the battery, \( E = 10 \, \text{V} \) - Internal resistance of the battery, \( r = 3 \, \Omega \) - Current in the circuit, \( I = 0.5 \, \text{A} \) Show more…
Show all steps
Your feedback will help us improve your experience
Adam Moon and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

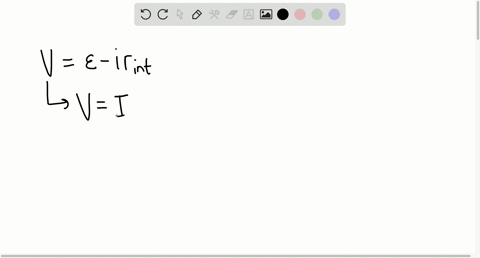

A voltaic cell provides a current of 0.5 A when in a circuit with a 3 ? resistor. If the internal resistance of the cell is 0.1 ?, what is the voltage across the terminals of the battery when there is no current flowing? (A) 0.05 V (B) 1.5 V (C) 1.505 V (D) 1.55 V

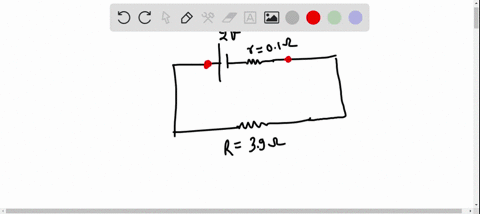

The internal resistance of cell of emf $2 \mathrm{~V}$ is $0.1 \Omega$. It is connected to a resistance of $3.9 \Omega$. The voltage across the cell will be (a) $0.5 \mathrm{~V}$ (b) $1.9 \mathrm{~V}$ (c) $1.95 \mathrm{~V}$ (d) $2 \mathrm{~V}$
A battery of emf $10 \mathrm{~V}$ and internal resistance $3 \Omega$ is connected to a resistor. If the current in the circuit is $0.5 \mathrm{~A}$, what is the resistance of the resistor? What is the terminal voltage of the battery when the circuit is closed?
