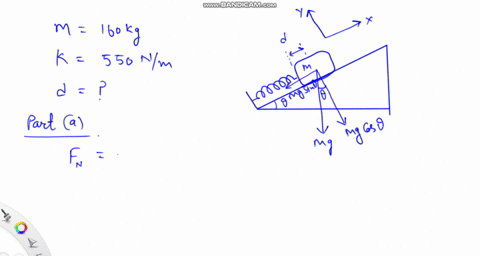

Here in this given problem there is an inclined plane inclined at an angle theta with the horizontal.
00:17
A block kept over it, a spring attached with the lower end of this inclined plane and being compressed under the gravitational force and this compression in the spring that is equal to d.
00:50
If the mass of this block is m then its weight m g acting vertically downwards so its components one of the component normal to this plane incline plane because if this angle is theta this angle here that will also be theta.
01:12
So the component of weight of the block normal to the plane that is m g cost theta and component along the inclined plane that is m g sine theta.
01:32
So the spring will be compressed under the influence of this mg sine theta component.
01:39
X -axis is along the inclined plane in upward direction.
01:45
Y -axis is normal to the incline plane.
01:51
Mass of the block that is 160 kilogram spring constant of the standard spring, ideal spring, 550 newton per meter and compression in the spring that is d.
02:12
For the time being this is not given to us.
02:16
Now in the first part of the problem, part a, we have to write down.
02:24
An expression for the normal force exerted by the plane on the block and using newton's third law of motion that will be equal to m g cos theta and that is positive m g cos theta because it is along positive y -axis and here it becomes the answer for the first part of the problem that is a long positive y axis.
03:06
Then in the second part of the problem, we have to write down an expression for the forces acting on the block along the inclined plane.
03:22
And as the block is having a tendency to move up, actually there will be no net force acting on the block when the block just starts moving up...
