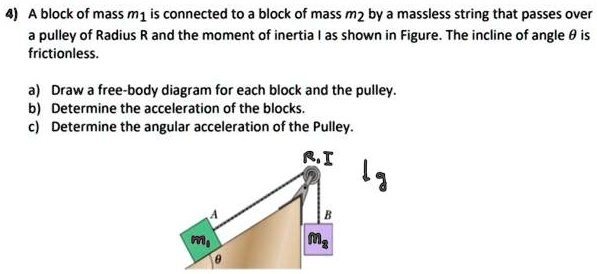

4) A block of mass m1 is connected to a block of mass m2 by a massless string that passes over a pulley of Radius R and the moment of inertia I as shown in Figure. The incline of angle ? is frictionless. a) Draw a free-body diagram for each block and the pulley. b) Determine the acceleration of the blocks. c) Determine the angular acceleration of the Pulley.

          4) A block of mass m1 is connected to a block of mass m2 by a massless string that passes over a pulley of Radius R and the moment of inertia I as shown in Figure. The incline of angle ? is frictionless.

a) Draw a free-body diagram for each block and the pulley.
b) Determine the acceleration of the blocks.
c) Determine the angular acceleration of the Pulley.

4) A block of mass m1 is connected to a block of mass m2 by a massless string that passes over a pulley of Radius R and the moment of inertia I as shown in Figure. The incline of angle ? is frictionless.

a) Draw a free-body diagram for each block and the pulley.
b) Determine the acceleration of the blocks.
c) Determine the angular acceleration of the Pulley.

Added by Jonathan L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Niharika Dwivedi

01/29/2022

Step 1

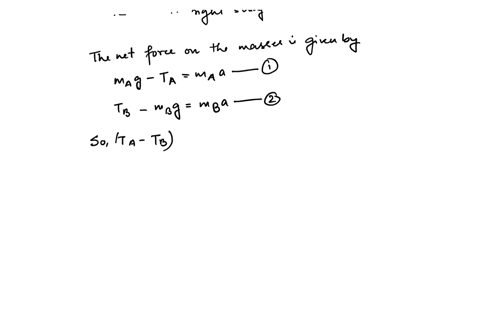

For block m1: - There is a gravitational force acting downwards, which can be represented by mg, where g is the acceleration due to gravity. - There is a tension force acting upwards due to the string, which we can represent as T1. - There is no friction force Show more…

Show all steps

Thanks for your feedback!

A block of mass m1 is connected to a block of mass m2 by a massless string that passes over a pulley of Radius R and the moment of inertia I as shown in Figure. The incline of angle θ is frictionless. a) Draw a free-body diagram for each block and the pulley. b) Determine the acceleration of the blocks. c) Determine the angular acceleration of the Pulley.
