A block with mass m=5.00 kg slides down a a surface inclined 36.9^∘ to the horizontal (Fig. P10.

In (a), the block is accelerating down the plane. The tension in the

Question

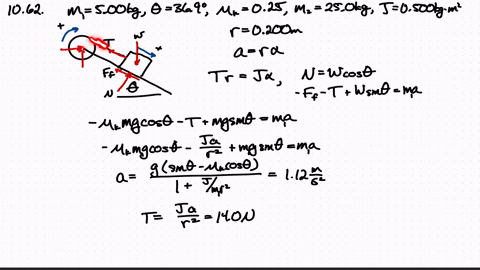

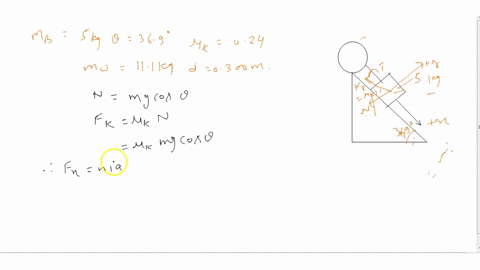

A block with mass $m=5.00 \mathrm{kg}$ slides down a a surface inclined $36.9^{\circ}$ to the horizontal (Fig. P10.70). The coefficient of kinetic friction is $0.25 .$ A string attached to the block is wrapped around a flywheel on a fixed axis at $O .$ The flywheel has mass 25.0 $\mathrm{kg}$ and moment of inertia 0.500 $\mathrm{kg} \cdot \mathrm{m}^{2}$ with respect to the axis of rotation. The string pulls without slipping at a perpendicular distance of 0.200 $\mathrm{m}$ from that axis. (a) What is the acceleration of the block down the plane? (b) What is the tension in the string?

          A block with mass $m=5.00 \mathrm{kg}$ slides down a a surface inclined $36.9^{\circ}$ to the horizontal (Fig. P10.70). The coefficient of kinetic friction is $0.25 .$ A string attached to the block is wrapped around a flywheel on a fixed axis at $O .$ The flywheel has mass 25.0 $\mathrm{kg}$ and
moment of inertia 0.500 $\mathrm{kg} \cdot \mathrm{m}^{2}$ with respect to the axis of rotation. The string pulls without slipping at a perpendicular distance of 0.200 $\mathrm{m}$ from that axis. (a) What is the acceleration of the block down the plane? (b) What is the tension in the string?

Added by Joan C.
