A block with mass m = 5.00 kg slides down a surface inclined 36.9^∘to the horizontal (Fig. P10.6

A block with mass m = 5.00 kg slides down a surface inclined...

A block with mass $m =$ 5.00 kg slides down a surface inclined 36.9$^\circ$ to the horizontal ($\textbf{Fig. P10.62}$). The coefficient of kinetic friction is 0.25. A string attached to the block is wrapped around a flywheel on a fixed axis at $O$. The flywheel has mass 25.0 kg and moment of inertia 0.500 kg $\cdot$ m$^2$ with respect to the axis of rotation. The string pulls without slipping at a perpendicular distance of 0.200 m from that axis. (a) What is the acceleration of the block down the plane? (b) What is the tension in the string? Figure P10.62 (CAN'T COPY THE FIGURE)

Key Concepts

Kinetic Friction

Kinetic friction is the resistive force that acts opposite to the relative motion between sliding surfaces. This concept is important for calculating the net force on objects moving along an inclined plane or any surface where friction is present.

Moment of Inertia

The moment of inertia is a measure of an object's resistance to changes in its angular velocity. It plays a central role in determining how a rigid body accelerates rotationally when subjected to a torque, analogous to mass in translational motion.

Coupled Translational and Rotational Motion

This concept involves systems where the motion of a translating object is connected to the rotation of another body through mechanisms like strings or pulleys. Understanding the relationship between linear acceleration and angular acceleration, as well as the forces and torques involved, is key to solving these interconnected dynamic problems.

Newton's Second Law

This concept states that the net force acting on an object is equal to the mass of the object multiplied by its acceleration. It is essential for understanding both the translational motion of an object and the rotational motion of a body when forces and torques are applied.

Rotational Dynamics

Rotational dynamics extends Newton's Second Law to rotating systems, where the net torque acting on a body is equal to its moment of inertia multiplied by its angular acceleration. This principle is crucial in analyzing systems in which linear and angular quantities interact.

Transcript

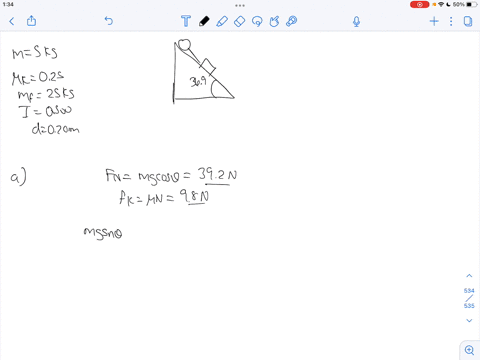

00:01 Now we have this system where we have a block sliding down this incline.

00:07 The incline is at 36 .9 degrees with the horizontal.

00:12 And it's connected to a rope that is then spooled around a pulley here.

00:18 And so this thing rotates as this thing moves down.

00:22 So let's see here.

00:26 This thing, the block here weighs 5 kilograms.

00:31 There's a coefficient of kinetic friction of 0 .25 between the block and this.

00:35 Ramp.

00:37 This pulley here weighs 25 kilograms and we're also given its mass moment is 0 .500 kilogram meters squared and its radius is 0 .2 meters.

00:51 Again we're assuming no slipping so that the acceleration of this guy equals this radius times the angular acceleration of this pulley.

01:00 So we draw free by a diagram and of this pulley here we have just the reaction forces at the pivot point.

01:09 But again, where those go through the pivot point, so when we take moments about that, they don't show up.

01:16 So they don't actually come into our problem.

01:18 If we wanted to figure out what they were, we could take force balances on the x and the y direction here, but they never asked for that.

01:24 So t here creates a positive torque, t times r.

01:30 So it's always perpendicular.

01:32 And then that equals j times alpha.

01:37 The angular acceleration of this pulling.

01:39 Then for this guy here, in this direction we have no acceleration.

01:44 So we have n equals w cosine of theta.

01:50 So this is the component of the weight perpendicular to the ramp.

01:54 And in this direction, we have minus the friction force, minus the tension, plus the component of weight along the ramp equals the mass of this guy here times its acceleration...
