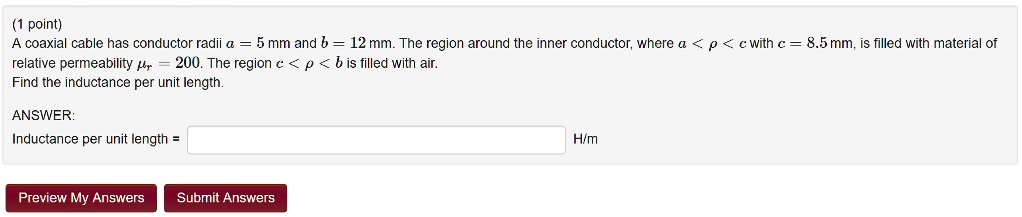

(1 point) A coaxial cable has conductor radii a = 5 mm and b = 12 mm. The region around the inner conductor, where $a < ho < c$ with c = 8.5 mm, is filled with material of relative permeability $mu_r = 200$. The region $c < ho < b$ is filled with air. Find the inductance per unit length. ANSWER: Inductance per unit length = ____ H/m
Added by Juan C.
Close
Step 1
First, we need to find the magnetic field inside the coaxial cable. We can use Ampere's law to do this. Since the cable has cylindrical symmetry, we can use a circular path around the inner conductor: ∮B·dl = μ0Ienc where B is the magnetic field, dl is an Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 71 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.
A Coaxial cable consists of a solid inner cylindrical conductor of radius 2 mm and an outer cylindrical shell of inner radius 3 mm and outer radius 3.5 mm. A current of 15 A flows down the inner wire and an equal return current flows in the outer conductor. If we assume that the currents are uniform over the cross section of the conductors, then calculate the magnetic field at a radius of 2.5 mm (use ampere's law) [A] 2.4 mT [B] 2.1 uT [C] 3.2 uT [D] 1.2 mT [E] 0.
Shaiju T.
A coaxial cable consists of a solid inner conductor of radius a =0.2 m carrying total current of 5A, surrounded by a concentric cylindrical tube of inner radius b=0.4 m and outer radius c=0.6m carrying current of 5A. The conductors carry equal and opposite currents I distributed uniformly across their cross-sections. Determine the magnetic field at a distance r=0.5m from the axis. (10p)
