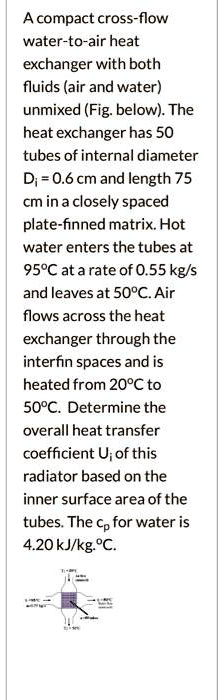

A compact cross-flow water-to-air heat exchanger with both fluids (air and water) unmixed (Fig. below). The heat exchanger has 50 tubes of internal diameter D_i = 0.6 cm and length 75 cm in a closely spaced plate-finned matrix. Hot water enters the tubes at 95°C at a rate of 0.55 kg/s and leaves at 50°C. Air flows across the heat exchanger through the interfin spaces and is heated from 20°C to 50°C. Determine the overall heat transfer coefficient U_i of this radiator based on the inner surface area of the tubes. The cp for water is 4.20 kJ/kg.°C.
Added by Eugene R.
Close
Step 1
Calculate the mass flow rate of water: Mass flow rate of water = 0.55 kg/s Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 80 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Water (cp = 4180 J/kg·K) is to be heated by solar-heated hot air (cp = 1010 J/kg·K) in a double-pipe counter-flow heat exchanger. Air enters the heat exchanger at 90°C at a rate of 0.3 kg/s, while water enters at 22°C at a rate of 0.1 kg/s. The overall heat transfer coefficient based on the inner side of the tube is given to be 80 W/m^2·K. The length of the tube is 12 m and the internal diameter of the tube is 1.2 cm. Determine the outlet temperatures of the water and the air.
Narayan H.
A shell and tube heat exchanger is designed to cool a mass flow rate of 60 kg/h of engine oil (cp = 1060 J/kg°C) from 300°C to 150°C. The cooling water, cp = 4182 J/kg°C, enters the tube side (Length is 1.75 m and Outer diameter is 2.54 cm) at a temperature of 20°C. If the overall heat transfer coefficient, U, is 10.83 W/m²°C and the Capacity Ratio of the Heat Exchanger is 2.4, calculate the following: a) The heat transfer rate, b) The mass flow rate of the cooling water in the units of (kg/h), c) The surface area of the heat exchanger.
Sri K.

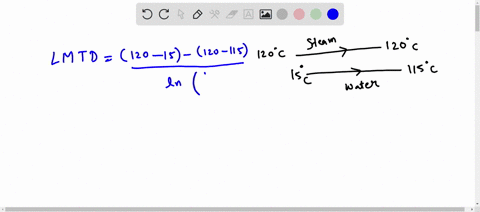

Water enters a 2.5-cm internal diameter thin copper tube of a heat exchanger at 15°C at a rate of 0.3 kg/s and is heated by steam condensing outside at 120°C. If the average heat transfer coefficient is 800 W/m²·°C, determine the length of the tube required in order to heat the water to 115°C.
