A diode is operating with iD = 2 mA and vD = 0.82 V. (a) What is IS if n = 1? (b) What is the diode current for vD = -5 V?
Added by Justin J.
Step 1
718). Given that iD = 2 mA, vD = 0.82 V, and n = 1, we can solve for IS. (a) Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 88 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

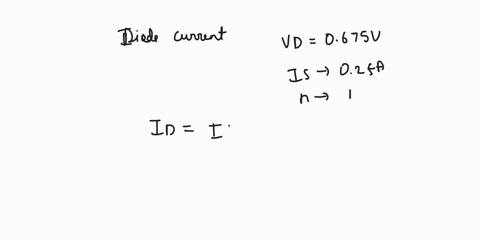

A diode has IS = 0.2 fA and n = 1. (a) What is the diode current if the diode voltage is 0.675 V? (b) What will be the diode voltage if the current increases by a factor of 3?
Adi S.

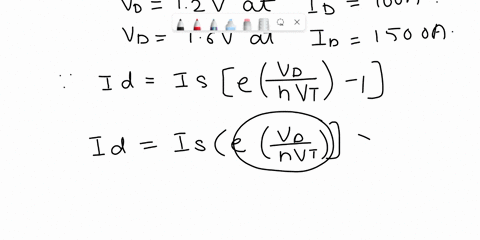

The measured values of a diode at a temperature of 25°C are: VD = 1.2V at ID = 100A VD = 1.6V at ID = 1500A. Determine (a) the emission coefficient n, and (b) the leakage current IS.
A diode has IS = 10^(-16) A and n = 1. (a) What is the diode voltage if the diode current is 250 μA at T = 25°C? (b) What is the diode voltage at T = 85°C? Assume the diode voltage temperature coefficient is -2 mV/K at 55°C.
Sri K.
