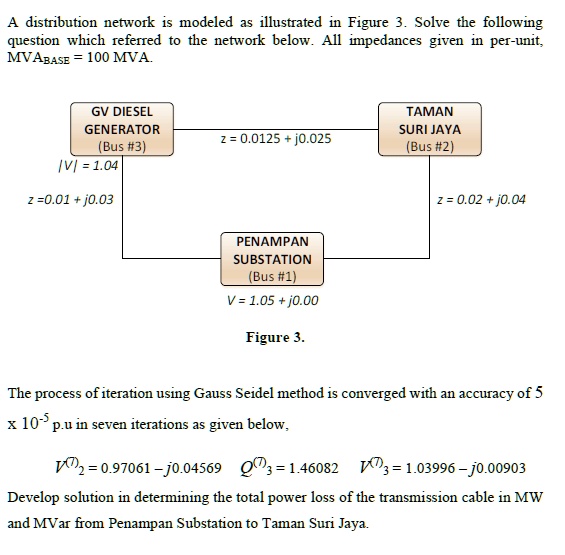

A distribution network is modeled as illustrated in Figure 3. Solve the following question which referred to the network below. All impedances given in per-unit, MVABASE = 100 MVA.
GV DIESEL GENERATOR (Bus #3)
|V| = 1.04
z = 0.0125 + j0.025
TAMAN SURI JAYA (Bus #2)
z = 0.02 + j0.04
PENAMPAN SUBSTATION (Bus #1)
V = 1.05 + j0.00
z = 0.01 + j0.03
Figure 3.
The process of iteration using Gauss Seidel method is converged with an accuracy of 5 x 10^-5 p.u in seven iterations as given below,
V(7)2 = 0.97061 - j0.04569 Q(7)3 = 1.46082 V(7)3 = 1.03996 - j0.00903
Develop solution in determining the total power loss of the transmission cable in MW and MVar from Penampan Substation to Taman Suri Jaya.
