Question

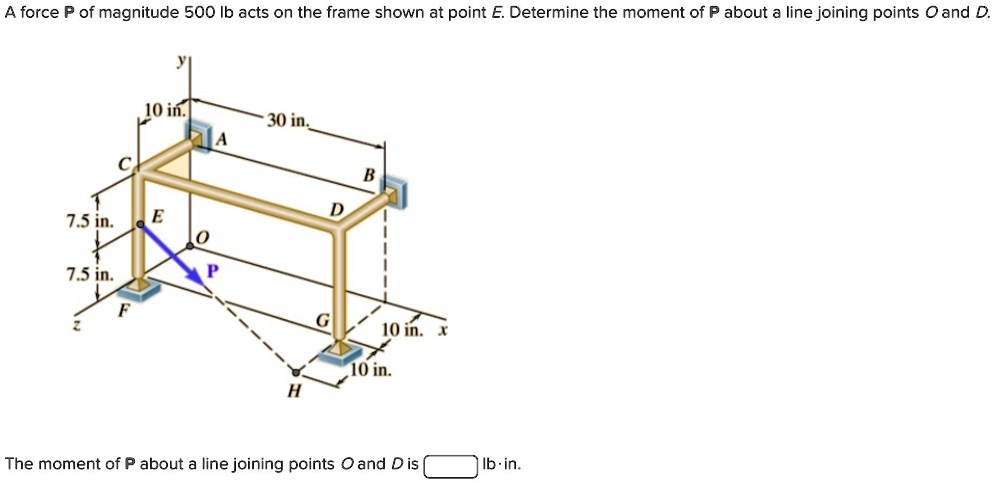

A force P of magnitude 500 lb acts on the frame shown at point E. Determine the moment of P about a line joining points O and D. y 10 in. 30 in. A C B D 7.5 in. E O 7.5 in. P F G z 10 in. x 10 in. H The moment of P about a line joining points O and D is ____ lb ext{-}in.

          A force P of magnitude 500 lb acts on the frame shown at point E. Determine the moment of P about a line joining points O and D.
y
10 in.
30 in.
A
C
B
D
7.5 in.
E
O
7.5 in.
P
F
G
z
10 in. x
10 in.
H
The moment of P about a line joining points O and D is ____ lb	ext{-}in.

A force P of magnitude 500 lb acts on the frame shown at point E. Determine the moment of P about a line joining points O and D.
y
10 in.
30 in.
A
C
B
D
7.5 in.
E
O
7.5 in.
P
F
G
z
10 in. x
10 in.
H
The moment of P about a line joining points O and D is lb ext-in.

Added by Brittney M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Gopesh Vishwakarma

01/02/2022

Step 1

From the diagram: - Point O is at the origin (0, 0, 0). - Point D is at (30 in, 10 in, 0). - Point E is at (0, 7.5 in, 7.5 in). Show more…

Show all steps

Thanks for your feedback!

A force P of magnitude 500 lb acts on the frame shown at point E. Determine the moment of P about a line joining points O and D. The moment of P about a line joining points O and D is lb·in.
