Question

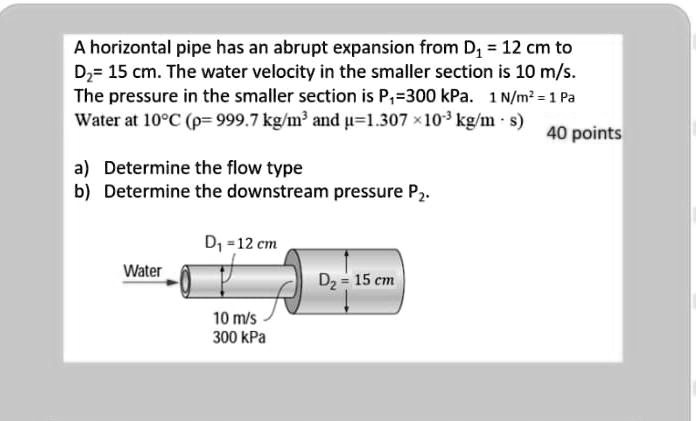

A horizontal pipe has an abrupt expansion from D? = 12 cm to D?= 15 cm. The water velocity in the smaller section is 10 m/s. The pressure in the smaller section is P?=300 kPa. 1 N/m² = 1 Pa Water at 10°C (?= 999.7 kg/m³ and ?=1.307 ×10?³ kg/m · s) a) Determine the flow type b) Determine the downstream pressure P?.

          A horizontal pipe has an abrupt expansion from D? = 12 cm to D?= 15 cm. The water velocity in the smaller section is 10 m/s. The pressure in the smaller section is P?=300 kPa. 1 N/m² = 1 Pa
Water at 10°C (?= 999.7 kg/m³ and ?=1.307 ×10?³ kg/m · s)
a) Determine the flow type
b) Determine the downstream pressure P?.

A horizontal pipe has an abrupt expansion from D? = 12 cm to D?= 15 cm. The water velocity in the smaller section is 10 m/s. The pressure in the smaller section is P?=300 kPa. 1 N/m² = 1 Pa
Water at 10°C (?= 999.7 kg/m³ and ?=1.307 ×10?³ kg/m · s)
a) Determine the flow type
b) Determine the downstream pressure P?.

Added by Robert S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Mark Scythian

01/06/2023

Step 1

Calculate the area of the expansion: A = (D1-Dz)² Show more…

Show all steps

Thanks for your feedback!

A horizontal pipe has an abrupt expansion from D1 = 12 cm to D2 = 15 cm. The water velocity in the smaller section is 10 m/s. The pressure in the smaller section is P1 = 300 kPa. Determine the flow type. Determine the downstream pressure P2.
