7 1 iD 2 D + VD - a) In the diagram to the left, the current $i_D = 250$[mA], and the voltage $v_D = -25$ [V]. How much charge passes through D in 3.6 [s]? If the current is being carried by electrons, which way are the electrons going? b) For the current and voltage specified in part a), how much energy is delivered to D in 3.6 [s]?
Added by Samuel M.
Close
Step 1
The current I = 250 [mA] indicates that there is a flow of 250 milliamperes of charge per second in the circuit. Show more…
Show all steps
Your feedback will help us improve your experience
Mahendra Kumar and 55 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

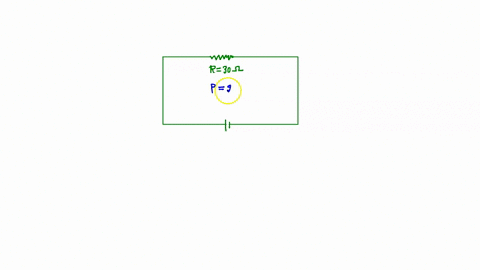

The power in an electrical circuit is given by the equation P= I²R, where I is the current flowing through the circuit and R is the resistance of the circuit. What is the current in a circuit that has a resistance of 30 ohms and a power of 2 watts? A. 15 amps B. 0.26 amps C. 3.9 amps D. 0.067 amps
Sahil K.
In Fig. $26-33,$ a battery of potential difference $V=12 \mathrm{V}$ is connected to a resistive strip of resistance $R=6.0 \Omega .$ When an electron moves through the strip from one end to the other, (a) in which direction in the fig- ure does the electron move, (b) how much work is done on the electron by the electric field in the strip, and (c) how much energy is transferred to the thermal energy of the strip by the electron?

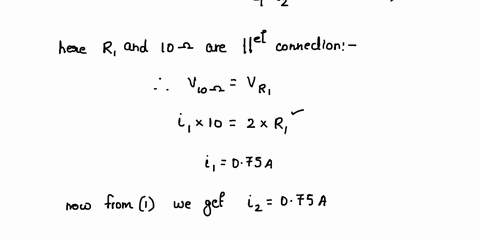

In the circuit shown in Fig. $\mathrm{E} 26.20,$ the rate at which $R_{1}$ is dissipating electrical energy is $15.0 \mathrm{~W}$. (a) Find $R_{1}$ and $R_{2}$. (b) What is the emf of the battery? (c) Find the current through both $R_{2}$ and the $10.0 \Omega$ resistor. (d) Calculate the total electrical power consumption in all the resistors and the electrical power delivered by the battery. Show that your results are consistent with conservation of energy.
