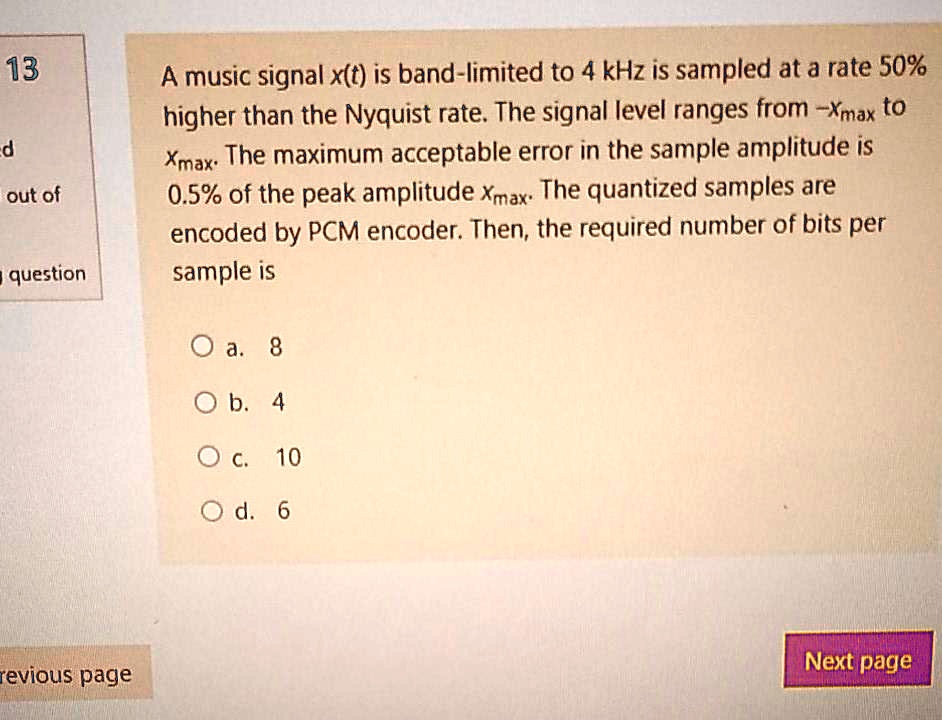

A music signal x(t) is band-limited to 4 kHz is sampled at a rate 50% higher than the Nyquist rate. The signal level ranges from -xmax to xmax. The maximum acceptable error in the sample amplitude is 0.5% of the peak amplitude xmax. The quantized samples are encoded by PCM encoder. Then, the required number of bits per sample is a. 8 b. 4 c. 10 d. 6
Added by Michael G.
Close
Step 1
The Nyquist rate is twice the maximum frequency, so it would be 2*4 kHz = 8 kHz. The signal is sampled at a rate 50% higher than the Nyquist rate, so the sampling rate is 1.5*8 kHz = 12 kHz. The maximum acceptable error in the sample amplitude is 0.5% of the Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 63 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An audio signal of bandwidth 4 kHz is sampled at a rate 25% above the Nyquist rate and quantized. The quantization error is not to exceed 0.1% of the signal peak amplitude. The resulting quantized samples are now coded and transmitted by 4-ary pulses. (a) Determine the minimum number of 4-ary pulses required to encode each sample. (b) Determine the minimum transmission bandwidth required to transmit this data with zero ISI.
Sri K.
Adi S.

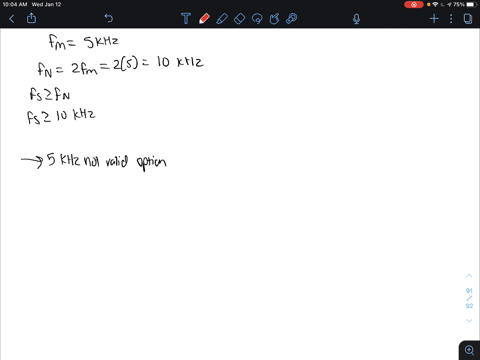

A band-limited signal with a maximum frequency of 5 kHz is to be sampled. According to the sampling theorem, the sampling frequency which is not valid is: - 5 kHz - 12 kHz - 10 kHz - 15 MHz - 20 kHz
