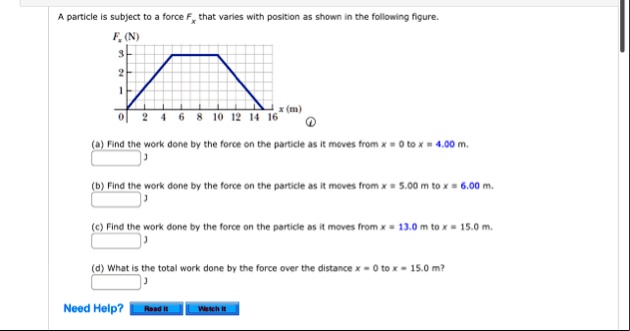

A particle is subject to a force $F_x$ that varies with position as shown in the following figure.
$F_x$ (N)
3
2
1
x (m)
0 2 4 6 8 10 12 14 16

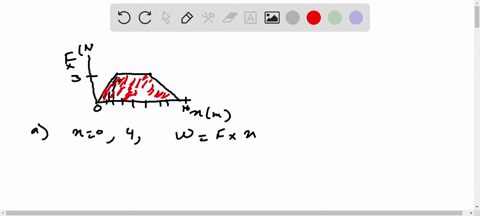

(a) Find the work done by the force on the particle as it moves from x = 0 to x = 4.00 m.
(b) Find the work done by the force on the particle as it moves from x = 5.00 m to x = 6.00 m.
(c) Find the work done by the force on the particle as it moves from x = 13.0 m to x = 15.0 m.
(d) What is the total work done by the force over the distance x = 0 to x = 15.0 m?
