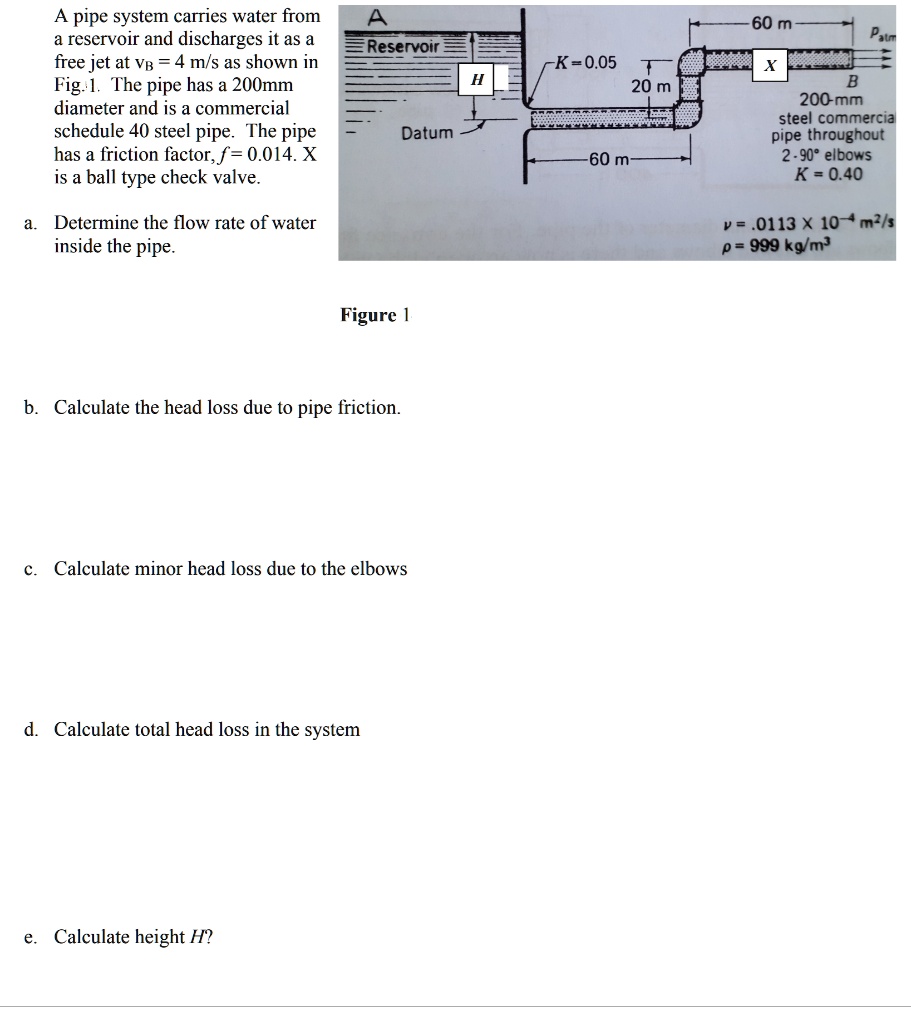

A pipe system carries water from a reservoir and discharges it as a free jet at vB = 4 m/s as shown in Fig. 1. The pipe has a 200mm diameter and is a commercial schedule 40 steel pipe. The pipe has a friction factor, f = 0.014. X is a ball type check valve. a. Determine the flow rate of water inside the pipe. b. Calculate the head loss due to pipe friction. c. Calculate minor head loss due to the elbows d. Calculate total head loss in the system e. Calculate height H? A Reservoir H Datum K = 0.05 60 m 20 m 60 m X B 200-mm steel commercial pipe throughout 2-90 elbows K = 0.40 Patm ? = .0113 x 10^-4 m^2/s ? = 999 kg/m^3 Figure 1

          A pipe system carries water from a reservoir and discharges it as a free jet at vB = 4 m/s as shown in Fig. 1. The pipe has a 200mm diameter and is a commercial schedule 40 steel pipe. The pipe has a friction factor, f = 0.014. X is a ball type check valve.

a. Determine the flow rate of water inside the pipe.
b. Calculate the head loss due to pipe friction.
c. Calculate minor head loss due to the elbows
d. Calculate total head loss in the system
e. Calculate height H?

A Reservoir
H Datum
K = 0.05
60 m
20 m
60 m
X
B 200-mm steel commercial pipe throughout 2-90   elbows K = 0.40
Patm
? = .0113 x 10^-4 m^2/s
? = 999 kg/m^3
Figure 1

A pipe system carries water from a reservoir and discharges it as a free jet at vB = 4 m/s as shown in Fig. 1. The pipe has a 200mm diameter and is a commercial schedule 40 steel pipe. The pipe has a friction factor, f = 0.014. X is a ball type check valve.

a. Determine the flow rate of water inside the pipe.
b. Calculate the head loss due to pipe friction.
c. Calculate minor head loss due to the elbows
d. Calculate total head loss in the system
e. Calculate height H?

A Reservoir
H Datum
K = 0.05
60 m
20 m
60 m
X
B 200-mm steel commercial pipe throughout 2-90 elbows K = 0.40
Patm
? = .0113 x 10^-4 m^2/s
? = 999 kg/m^3
Figure 1
