A square loop of wire, with sides of length $L$, carries a current $I$. Show that the magnetic field at the center of the square is $B = frac{2sqrt{2}mu_0 I}{pi L}$
Added by Brenda R.
Close
Step 1
To find the magnetic field at the center of one side of the square loop, we can use the Biot-Savart law. The Biot-Savart law states that the magnetic field at a point due to a current-carrying wire is directly proportional to the current and inversely proportional Show more…
Show all steps
Your feedback will help us improve your experience
Prabhat Tyagi and 89 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A square loop of wire of edge length $a$ carries current $i$. Using the results of Problem 11 , show that, at the center of the loop, the magnitude of the magnetic field produced by the current is $$ B=\frac{2 \sqrt{2} \mu_{0}|i|}{\pi a} $$.

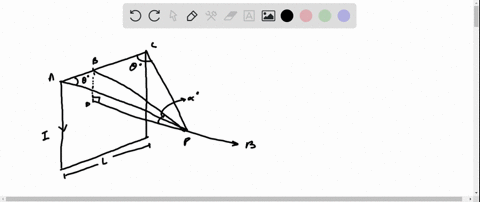

A wire is formed into the shape of a square of edge length $L(\text { Fig. } \mathrm{P} 30.67)$ . Show that when the current in the loop is $I,$ the magnetic field at point $P,$ a distance $x$ from the center of the square along its axis is $$B=\frac{\mu_{0} I L^{2}}{2 \pi\left(x^{2}+L^{2} / 4\right) \sqrt{x^{2}+L^{2} / 2}}$$

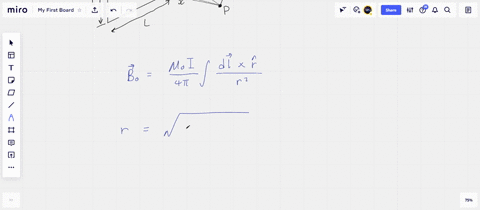

A wire is formed into a square of edge length $L$ (Fig. P30.69). Show that when the current in the loop is $I$. the magnetic field at point $P$, a distance $x$ from the center of the square along its axis, is $$ B=\frac{\mu_{0} I L^{2}}{2 \pi\left(x^{2}+L^{2} / 4\right) \sqrt{x^{2}+L^{2} / 2}} $$
