Question
A square loop of wire of edge length $a$ carries current $i$. Using the results of Problem 11 , show that, at the center of the loop, the magnitude of the magnetic field produced by the current is$$B=\frac{2 \sqrt{2} \mu_{0}|i|}{\pi a}$$.
Step 1
Step 1: We know that the magnetic field at the center of a wire loop is given by the formula: $$ B=\frac{\mu_{0}i}{4\pi r}\left(\cos\theta_{1}+\cos\theta_{2}\right) $$ where $r$ is the distance from the wire to the point where the magnetic field is being Show more…
Show all steps
Your feedback will help us improve your experience
Manish Kumar ( Iit K ) and 61 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A square loop of wire of edge length $a$ carries current $i$. Show that, at the center of the loop, the magnitude of the magnetic field produced by the current is $$ B=\frac{2 \sqrt{2} \mu_{0} i}{\pi a} $$

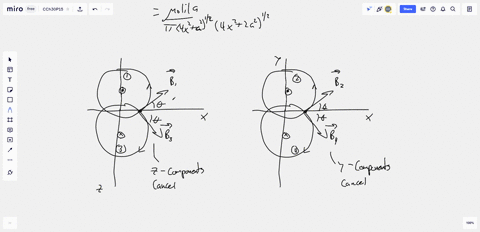

A square loop of wire of edge length $a$ carries current $i$. Using the results of Problem 11 , show that the magnitude of the magnetic field produced at a point on the axis of the loop and a distance $x$ from its center is $$ B(x)=|\vec{B}(x)|=\frac{4 \mu_{0}|i| a^{2}}{\pi\left(4 x^{2}+a^{2}\right)\left(4 x^{2}+2 a^{2}\right)^{1 / 2}} $$ Prove that this result is consistent with the result of Problem $12 .$

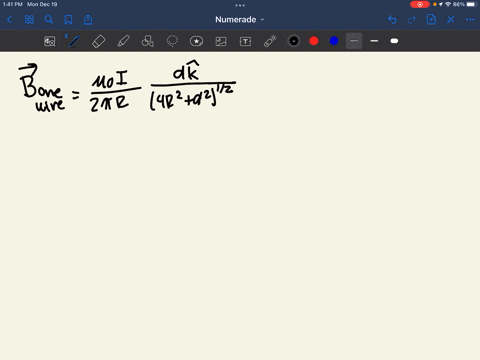

A square loop of wire, of side $d$, carries a current $I$. Show that the magnetic field at the center of the square is $$ B=\frac{2 \sqrt{2} \mu_{0} I}{\pi d} $$ [Hint: Determine $\overrightarrow{\mathbf{B}}$ for each segment of length $d .$.
