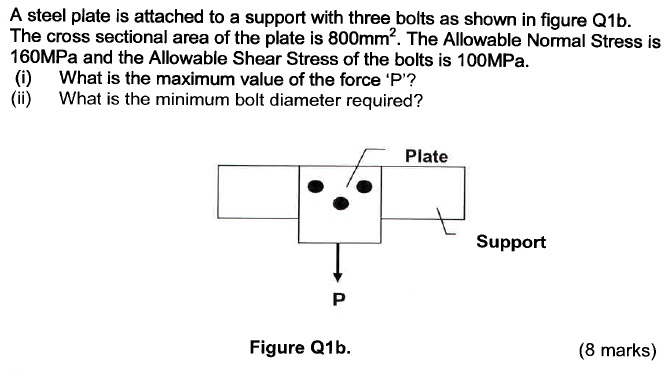

A steel plate is attached to a support with three bolts as shown in figure Q1b. The cross sectional area of the plate is 800mm^2. The Allowable Normal Stress is 160MPa and the Allowable Shear Stress of the bolts is 100MPa. (i) What is the maximum value of the force 'P'? (ii) What is the minimum bolt diameter required? Plate Support P Figure Q1b.
Added by Angelica R.
Close
Step 1
(i) The maximum value of the force P is 8500N. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 63 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

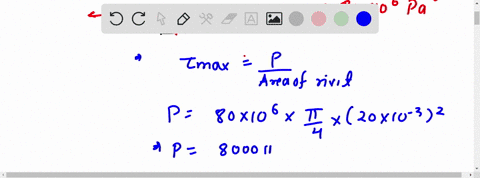

In the figure, assume that a 20-mm diameter rivet joins the plates which are 100 mm wide. If the allowable stresses are 140 MPa for bearing in the plate material and 80 MPa for shearing of the rivet, determine the minimum thickness of each plate. Under the conditions specified in part (a), what is the largest average tensile stress in the plates?
Sufiyan A.
The steel tie-bar shown in the figure has been designed to carry a tension force of 77 kN when bolted between double brackets at A and B. The bar will be fabricated from T = 20 mm thick plate. The width of the plate W = 45 mm. Other dimensions are given in the figure. The diameter of the bolts at A and B is D = 37 mm. Calculate the shear stress in the bolts. Input your answer as a value only in MPa to one decimal place without +/- sign.
Adi S.

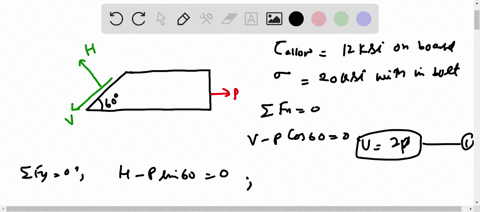

The tension member is fastened together using two bolts, one on each side of the member as shown. Each bolt has a diameter of 0.3 in. Determine the maximum load $P$ that can be applied to the member if the allowable shear stress for the bolts is $\tau_{\text {allow }}=12 \mathrm{ksi}$ and the allowable average normal stress is $\sigma_{\text {allow }}=20 \mathrm{ksi}$
