A steel tank having an internal diameter of 1.2 metres Is subjected to an internal pressure of 7 megapascals. The tensile and compressive elastic Strength of material are 280 megapascals Assuming factor of safety =2, determine the wall thickness
Added by David M.
Step 1
Hoop stress (σ) = Pressure x Radius / Wall thickness σ = 7 MPa x 0.6 m / Wall thickness σ = 4.2 / Wall thickness Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 57 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

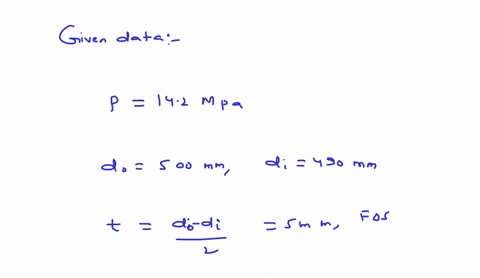

Compute the allowable stress developed in the walls of the steel tank as well as the change in diameter due to the internal pressure. The outer diameter is 500 mm and the internal diameter 490 mm. The tank is subjected to an internal gauge pressure of 14.2 MPa. A factor of safety FOS = 6 is to be used in the design.
Narayan H.
A thin-walled steel tank has an outside diameter of 600 mm and a length of 3 m. It is subjected to an internal pressure of 2 MPa. What is the minimum thickness of the tank if the allowable design stress is 75 MPa? If the thickness of the tank is 8 mm, determine the circumferential stress in the tank.
Adi S.

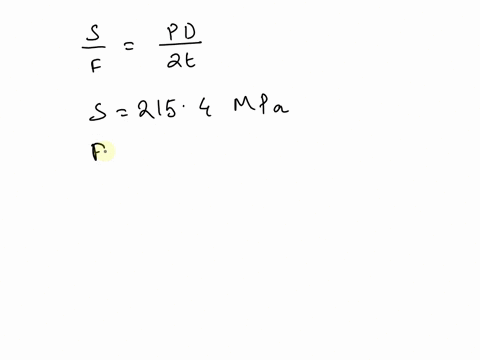

Compute the safe wall thickness of a 76.2 cm diameter steel tank. The tank is subjected to 7.33 Mpa pressure and the steel material has yield stress of 215.4 Mpa. The factor of safety to use is 3 A. 1 ½ inches B. 3.89 cm C. 4.09 cm D. 3.59 cm
Madhur L.
