A switch was closed to connect an inductor (7 H), a resistor (87 Ω) and a voltage source (44 V) all in series. Determine magnetic energy (in joules) that will be stored in the inductor after 5.3 s.
Added by David G.
Close
Step 1
Step 1: The current in an RL circuit is given by: $I(t) = \frac{V}{R}(1 - e^{-t/\tau})$ where $V$ is the voltage source, $R$ is the resistance, $t$ is the time, and $\tau = L/R$ is the time constant, with $L$ being the inductance. Show more…
Show all steps
Your feedback will help us improve your experience
Ankur S and 91 other AP CS educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Ankur S.

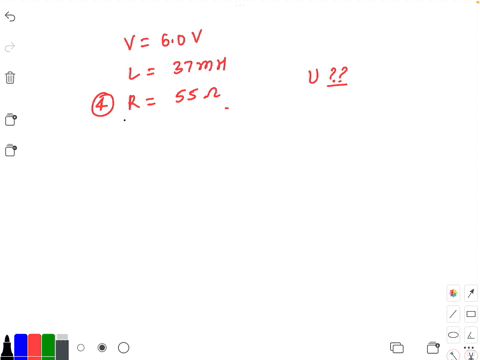

Consider the circuit shown in Figure $23-39 .$ Assuming the inductor in this circuit has the value $L=6.1 \mathrm{mH},$ how much energy is stored in the inductor after the switch has been closed a a long time?

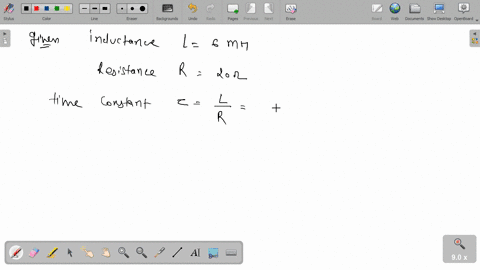

A series RL circuit with inductance 6.0 mH and resistance 20 is connected to a 12.0-V battery of negligible internal resistance. The energy stored in the magnetic field of the inductor 8.0 s after the switch is closed is
