Question

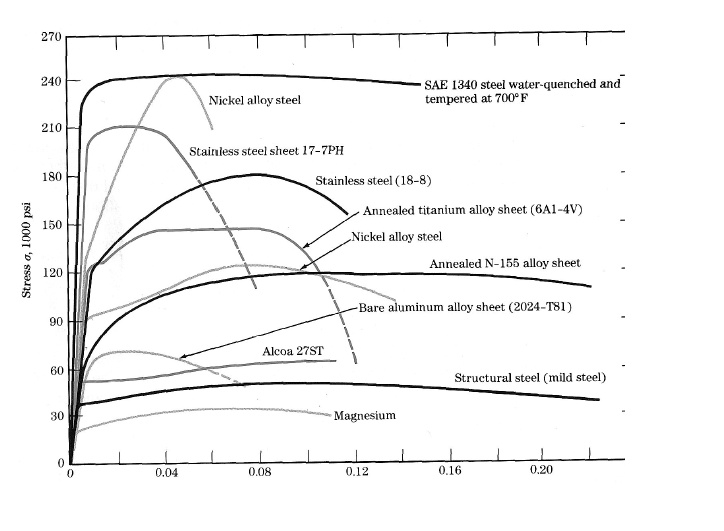

Stress ?, 1000 psi 270 240 SAE 1340 steel water-quenched and tempered at 700° F Nickel alloy steel 210 Stainless steel sheet 17-7PH 180 Stainless steel (18-8) 150 Annealed titanium alloy sheet (6A1-4V) 120 Nickel alloy steel Annealed N-155 alloy sheet 90 Bare aluminum alloy sheet (2024-T81) Alcoa 27ST 60 Structural steel (mild steel) 30 Magnesium 0 0 0.04 0.08 0.12 0.16 0.20

          Stress ?, 1000 psi
270
240
SAE 1340 steel water-quenched and tempered at 700° F
Nickel alloy steel
210
Stainless steel sheet 17-7PH
180
Stainless steel (18-8)
150
Annealed titanium alloy sheet (6A1-4V)
120
Nickel alloy steel
Annealed N-155 alloy sheet
90
Bare aluminum alloy sheet (2024-T81)
Alcoa 27ST
60
Structural steel (mild steel)
30
Magnesium
0
0 0.04 0.08 0.12 0.16 0.20

Stress ?, 1000 psi
270
240
SAE 1340 steel water-quenched and tempered at 700° F
Nickel alloy steel
210
Stainless steel sheet 17-7PH
180
Stainless steel (18-8)
150
Annealed titanium alloy sheet (6A1-4V)
120
Nickel alloy steel
Annealed N-155 alloy sheet
90
Bare aluminum alloy sheet (2024-T81)
Alcoa 27ST
60
Structural steel (mild steel)
30
Magnesium
0
0 0.04 0.08 0.12 0.16 0.20

Added by Jeffrey R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

08/08/2023

Step 1

The elastic region is the linear portion of the curve before any plastic deformation occurs. From the given data, it appears that the linear portion of the curve is between 0 and 0.04 strain. We can calculate the slope using the formula: Elastic modulus = Show more…

Show all steps

Thanks for your feedback!

(A) Using the stress-strain data presented below for the SAE 1340 steel water-quenched and tempered, determine the elastic modulus, the yield stress, the ultimate tensile stress, and the percent elongation to failure. (B) During a tensile test of 1340 steel, at what stress level does dislocation motion begin? Briefly justify your answer. (C) Suppose Rockwell indentation tests are used to measure the hardness of the 18-8 stainless steel and 17-7PH stainless steel sheet. Which of these will have the larger indent? Why?
