A Venturi meter (as shown in Figure Q5(b) below) is used for measuring flow of water along a pipe. The diameter of the Venturi throat is two fifths the diameter of the pipe. The inlet and throat are connected by water filled tubes to a mercury U-tube manometer. Showing the derivation of your flow equation, determine the inlet and throat velocity in m/s when H is 0.49 m. H is the manometer reading in metres of mercury. (Relative density of mercury is 13.6, density of water is 1,000 kg/mĀ³ and acceleration due to gravity is 9.81 m/s). Ignore losses.
Added by Julia A.
Close
Step 1
First, we need to derive the flow equation for the Venturi meter. We can use the Bernoulli's equation, which states that the total energy of a fluid flowing through a pipe is constant along a streamline. This can be expressed as: P1 + 1/2Ļv1^2 + Ļgh1 = P2 + Show moreā¦
Show all steps
Your feedback will help us improve your experience
Supreeta N and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
(a) State four assumptions under which the Bernoulli Equation can be applied. (b) A Venturi meter is being used to indicate the pressure difference between two points. If the velocity in the 25 mm-section is to be 10 m/s, calculate the water velocity in the 50 mm-section. Determine the volumetric flow rate in m^3/s. What is the manometer deflection h?
Madhur L.
A Venturi meter is being used to measure flow in a horizontal pipeline of diameter 250 mm which carries water. When the pressure difference between the throat and the entrance of the Venturi meter is 300 mm on a mercury manometer, determine the volumetric flow rate in the pipe line. The Venturi meter has a throat diameter of 80 mm and Venturi coefficient 0.97. The relative density of mercury is 13.6
Adi S.

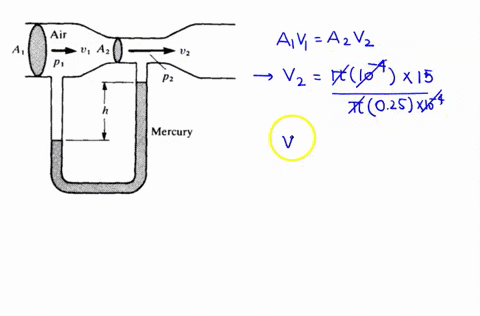

Problem 5: Consider the "Venturi flow meter" represented in Figure A. It is a device used to measure the flow velocity of a fluid by measuring the difference of pressure between two sections with different cross-sectional area. If the U-tube of the meter contains mercury, find the mercury-level difference h between the two arms. Let the radii of the wide and narrow parts of the main tube be r1 = 1.0 cm and r2 = 0.50 cm, respectively, and let the speed of the air entering the meter be v1 = 15.0 m/s. The density of air is rho_air = 1.3 kg/m^3, and that of mercury is rho_Hg = 13.6 x 10^3 kg/m^3. Consider that the presence of the U-tube does not alter the flow. Hint: Step 1: Find the difference in flow velocity between sections 1 and 2 Step 2: Transform this difference in velocities into a difference of pressures Step 3: Convert the pressure difference in a difference in height of the mercury level Solution: 1.6 cm
Sri K.
