Question

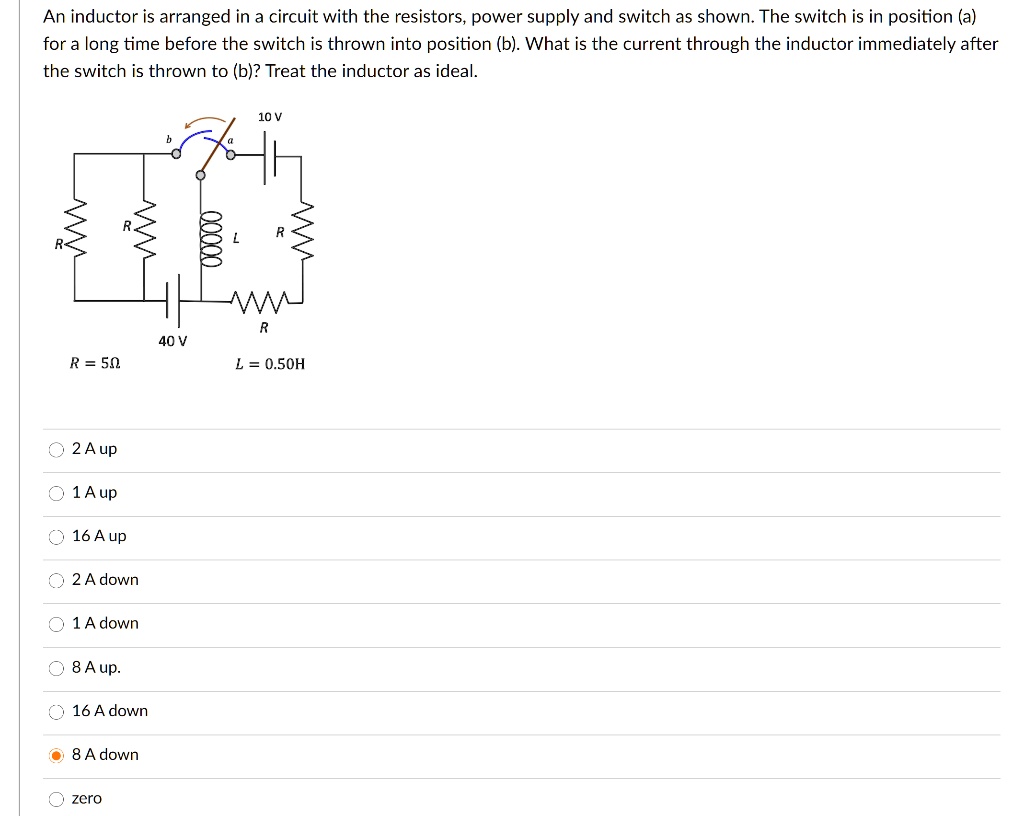

An inductor is arranged in a circuit with the resistors, power supply and switch as shown. The switch is in position (a) for a long time before the switch is thrown into position (b). What is the current through the inductor immediately after the switch is thrown to (b)? Treat the inductor as ideal. 10 V 40 V R = 5 ? L = 0.50 H Choices: 2 A up 1 A up 16 A up 2 A down 1 A down 8 A up 16 A down 8 A down zero

          An inductor is arranged in a circuit with the resistors, power supply and switch as shown. The switch is in position (a) for a long time before the switch is thrown into position (b). What is the current through the inductor immediately after the switch is thrown to (b)? Treat the inductor as ideal.

10 V
40 V
R = 5 ?		L = 0.50 H

Choices:
2 A up
1 A up
16 A up
2 A down
1 A down
8 A up
16 A down
8 A down
zero

An inductor is arranged in a circuit with the resistors, power supply and switch as shown. The switch is in position (a) for a long time before the switch is thrown into position (b). What is the current through the inductor immediately after the switch is thrown to (b)? Treat the inductor as ideal.

10 V
40 V
R = 5 ? L = 0.50 H

Choices:
2 A up
1 A up
16 A up
2 A down
1 A down
8 A up
16 A down
8 A down
zero

Added by Paula G.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adriano Chikande

04/28/2022

Step 1

Initially, the switch is in position (a) for a long time, which means the circuit has reached a steady state. In a steady state, the inductor behaves like a short circuit because the current through it is constant. Show more…
