17 The graph shows the variation of the velocity of a moving object with time. Draw the graph showing the variation of the position of the object with time. 21 The graph shows the displacement versus time of an object moving in a straight line. Four points on this graph have been selected. a Is the velocity between A and B positive, zero or negative? b What can you say about the velocity between B and C? c Is the acceleration between A and B positive, zero or negative? d Is the acceleration between C and D positive, zero or negative?

          17 The graph shows the variation of the velocity of a moving object with time. Draw the graph showing the variation of the position of the object with time.

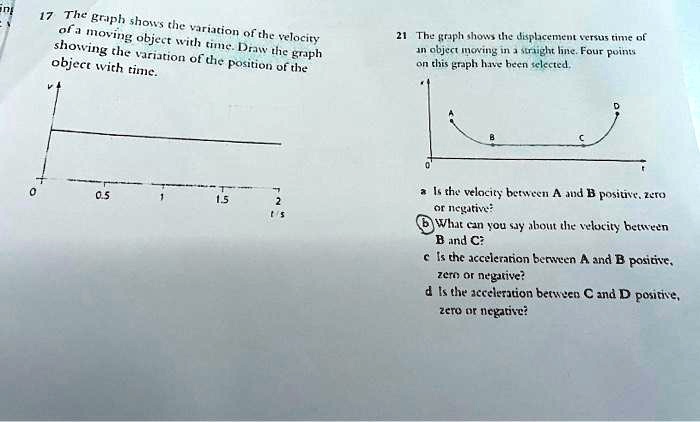

21 The graph shows the displacement versus time of an object moving in a straight line. Four points on this graph have been selected.

a Is the velocity between A and B positive, zero or negative?
b What can you say about the velocity between B and C?
c Is the acceleration between A and B positive, zero or negative?
d Is the acceleration between C and D positive, zero or negative?

Show more…

17 The graph shows the variation of the velocity of a moving object with time. Draw the graph showing the variation of the position of the object with time.

21 The graph shows the displacement versus time of an object moving in a straight line. Four points on this graph have been selected.

a Is the velocity between A and B positive, zero or negative?
b What can you say about the velocity between B and C?
c Is the acceleration between A and B positive, zero or negative?
d Is the acceleration between C and D positive, zero or negative?

Added by Lauren O.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

10/26/2023

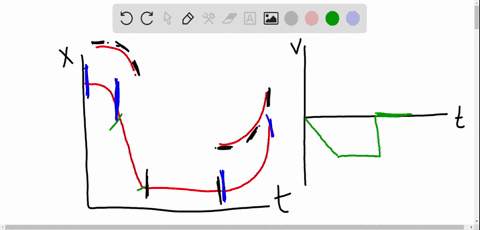

Step 1

To determine the velocity between A and B, we need to look at the slope of the displacement-time graph. If the slope is positive, the velocity is positive. If the slope is zero, the velocity is zero. If the slope is negative, the velocity is negative. b. To Show more…
