PROBLEM 2: (25%) For a stable system with transfer function G(s) = (s+2)/(s+4), find the steady-state response subject to input u(t) = 2+2sin(3t). (You need to use the frequency response formula for the sinusoidal part of the response.)
Added by Heather H.
Close
Step 1
We are given the input function u(t) = 2 + 2sin(3t). Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 99 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

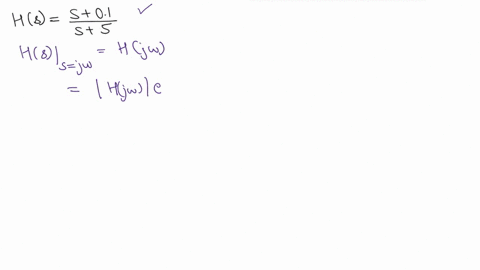

Find the frequency response (amplitude and phase response) of the system whose transfer function is H(s) = (s + 0.1) / (s + 5)
Sri K.
Using the Bode plot shown below, estimate the frequency response to the following inputs: a) u(t) = 3 cos 4t b) u(t) = 0.5 sin 40t c) u(t) = 10 cos 400t After doing the above, derive the transfer function for the system that has this Bode plot.
A continuous-time system is defined by the linear differential equation: d^2y/dt^2 + sqrt(2)dy/dt + y(t) = x(t) where x(t) is the input and y(t) is the output. Starting from the frequency response of the system, derive an equation for the steady-state output y(t) of the system in the form y(t) = A + sum_{n=1}^{infinity} A_n cos(nw_0t) + sum_{n=1}^{infinity} B_n sin(nw_0t) for the input x(t) in Figure Q2a below.
