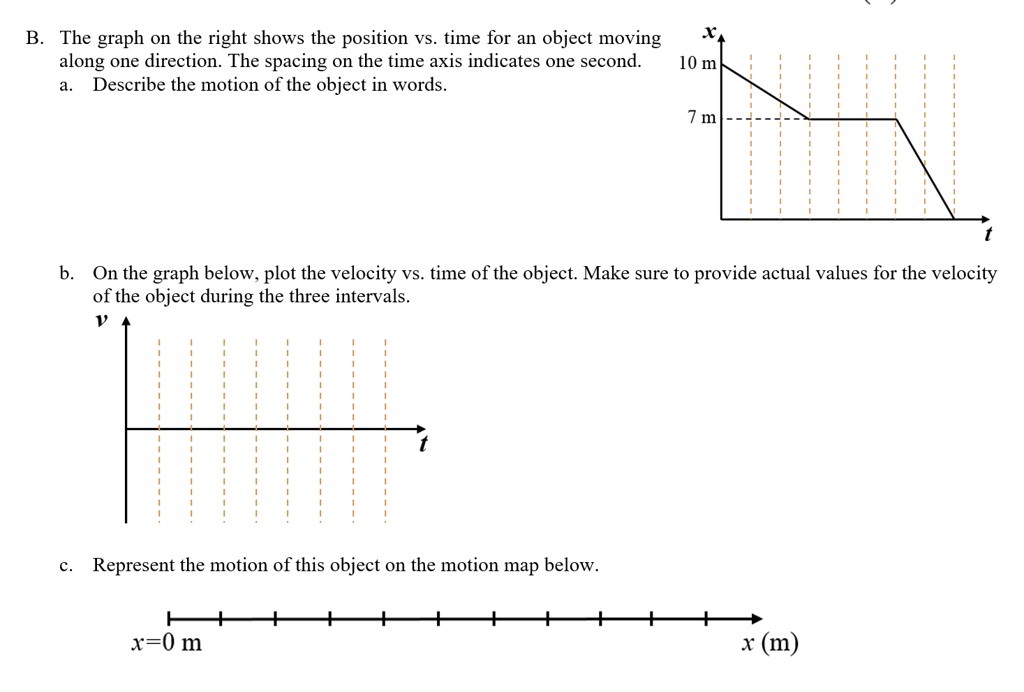

B. The graph on the right shows the position vs. time for an object moving along one direction. The spacing on the time axis indicates one second. a. Describe the motion of the object in words. 10 m 7 m t b. On the graph below, plot the velocity vs. time of the object. Make sure to provide actual values for the velocity of the object during the three intervals. v t c. Represent the motion of this object on the motion map below. x=0 m x (m)

          B. The graph on the right shows the position vs. time for an object moving along one direction. The spacing on the time axis indicates one second.
a. Describe the motion of the object in words.
10 m
7 m
t
b. On the graph below, plot the velocity vs. time of the object. Make sure to provide actual values for the velocity of the object during the three intervals.
v
t
c. Represent the motion of this object on the motion map below.
x=0 m
x (m)

B. The graph on the right shows the position vs. time for an object moving along one direction. The spacing on the time axis indicates one second.
a. Describe the motion of the object in words.
10 m
7 m
t
b. On the graph below, plot the velocity vs. time of the object. Make sure to provide actual values for the velocity of the object during the three intervals.
v
t
c. Represent the motion of this object on the motion map below.
x=0 m
x (m)

Added by Alfonso B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Hubert Agamasu

09/07/2023

Step 1

First, we need to analyze the position-time graph. We can see that the graph has three distinct intervals: Interval 1: The object is moving at a constant positive velocity (straight line with a positive slope). Interval 2: The object is at rest (horizontal Show more…
