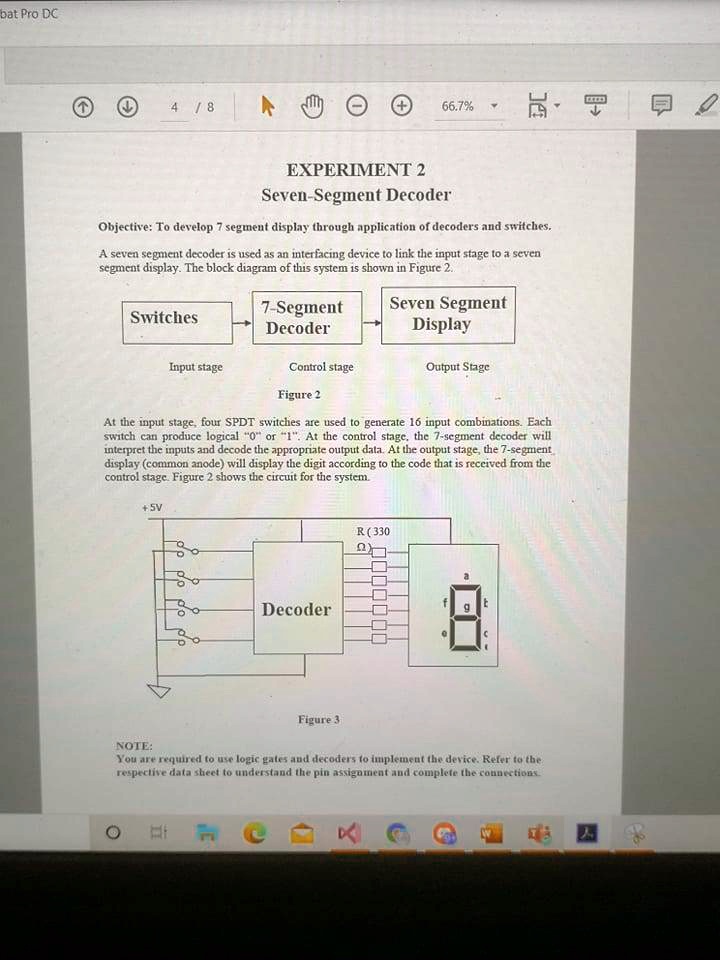

EXPERIMENT 2 Seven-Segment Decoder Objective: To develop 7 segment display through application of decoders and switches. A seven segment decoder is used as an interfacing device to link the input stage to a seven segment display. The block diagram of this system is shown in Figure 2.. Switches 7-Segment Decoder Seven Segment Display Input stage Control stage Output Stage Figure 2 At the input stage, four SPDT switches are used to generate 16 input combinations. Each switch can produce logical "0" or "1". At the control stage, the 7-segment decoder will interpret the inputs and decode the appropriate output data. At the output stage, the 7-segment display (common anode) will display the digit according to the code that is received from the control stage. Figure 2 shows the circuit for the system. +5V R (330 Decoder 8 NOTE: Figure 3 You are required to use logic gates and decoders to implement the device. Refer to the respective data sheet to understand the pin assignment and complete the connections.

          EXPERIMENT 2
Seven-Segment Decoder
Objective: To develop 7 segment display through application of decoders and switches.
A seven segment decoder is used as an interfacing device to link the input stage to a seven
segment display. The block diagram of this system is shown in Figure 2..
Switches
7-Segment
Decoder
Seven Segment
Display
Input stage
Control stage
Output Stage
Figure 2
At the input stage, four SPDT switches are used to generate 16 input combinations. Each
switch can produce logical "0" or "1". At the control stage, the 7-segment decoder will
interpret the inputs and decode the appropriate output data. At the output stage, the 7-segment
display (common anode) will display the digit according to the code that is received from the
control stage. Figure 2 shows the circuit for the system.
+5V
R (330
Decoder
8
NOTE:
Figure 3
You are required to use logic gates and decoders to implement the device. Refer to the
respective data sheet to understand the pin assignment and complete the connections.

EXPERIMENT 2
Seven-Segment Decoder
Objective: To develop 7 segment display through application of decoders and switches.
A seven segment decoder is used as an interfacing device to link the input stage to a seven
segment display. The block diagram of this system is shown in Figure 2..
Switches
7-Segment
Decoder
Seven Segment
Display
Input stage
Control stage
Output Stage
Figure 2
At the input stage, four SPDT switches are used to generate 16 input combinations. Each
switch can produce logical "0" or "1". At the control stage, the 7-segment decoder will
interpret the inputs and decode the appropriate output data. At the output stage, the 7-segment
display (common anode) will display the digit according to the code that is received from the
control stage. Figure 2 shows the circuit for the system.
+5V
R (330
Decoder
8
NOTE:
Figure 3
You are required to use logic gates and decoders to implement the device. Refer to the
respective data sheet to understand the pin assignment and complete the connections.
