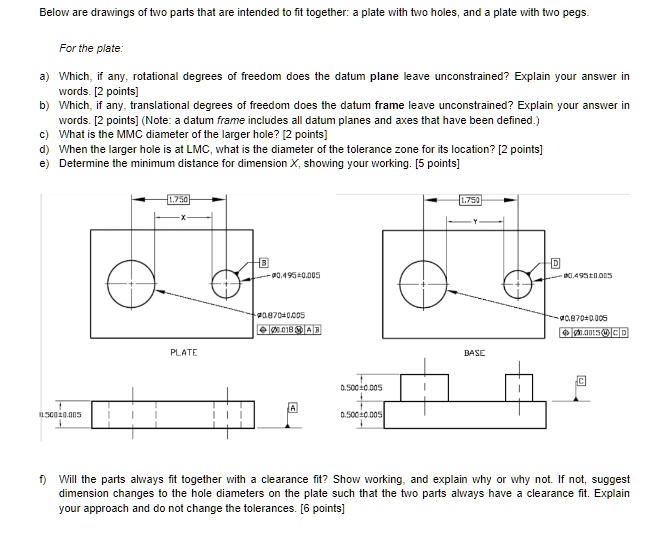

Below are drawings of two parts that are intended to fit together: a plate with two holes, and a plate with two pegs. For the plate: a) Which, if any, rotational degrees of freedom does the datum plane leave unconstrained? Explain your answer in words. [2 points] b) Which, if any, translational degrees of freedom does the datum frame leave unconstrained? Explain your answer in words. [2 points] (Note: a datum frame includes all datum planes and axes that have been defined.) c) What is the MMC diameter of the larger hole? [2 points] d) When the larger hole is at LMC, what is the diameter of the tolerance zone for its location? [2 points] e) Determine the minimum distance for dimension X, showing your working. [5 points] f) Will the parts always fit together with a clearance fit? Show working, and explain why or why not. If not, suggest dimension changes to the hole diameters on the plate such that the two parts always have a clearance fit. Explain your approach and do not change the tolerances. [6 points]
Added by Carolina S.
Close
Step 1
- The datum plane typically constrains rotation about the axis perpendicular to the plane. However, it does not constrain rotation around axes that lie in the plane itself. Therefore, the plate can rotate around any axis that lies in the datum plane. Show moreā¦
Show all steps
