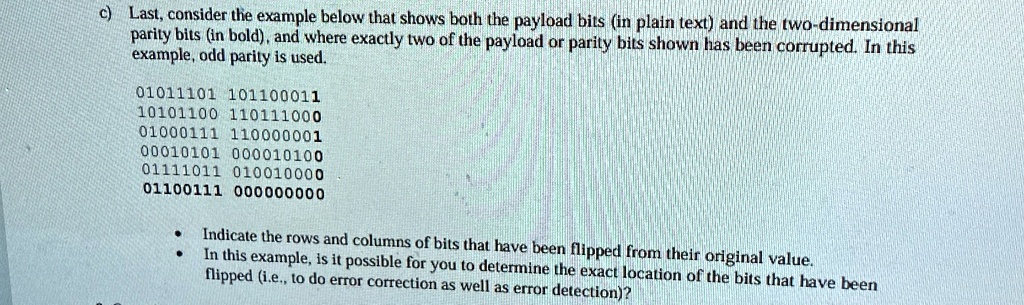

c) Last, consider the example below that shows both the payload bits (in plain text) and the two-dimensional parity bits (in bold), and where exactly two of the payload or parity bits shown has been corrupted. In this example, odd parity is used. 01011101 $\bf{1}$01100011 10101100 $\bf{1}$10111000 01000111 $\bf{1}$10000001 00010101 $\bf{0}$00010100 01111011 $\bf{0}$10010000 01100111 $\bf{0}$00000000 Indicate the rows and columns of bits that have been flipped from their original value. In this example, is it possible for you to determine the exact location of the bits that have been flipped (i.e., to do error correction as well as error detection)?

          c) Last, consider the example below that shows both the payload bits (in plain text) and the two-dimensional parity bits (in bold), and where exactly two of the payload or parity bits shown has been corrupted. In this example, odd parity is used.
01011101 $\bf{1}$01100011
10101100 $\bf{1}$10111000
01000111 $\bf{1}$10000001
00010101 $\bf{0}$00010100
01111011 $\bf{0}$10010000
01100111 $\bf{0}$00000000
Indicate the rows and columns of bits that have been flipped from their original value.
In this example, is it possible for you to determine the exact location of the bits that have been flipped (i.e., to do error correction as well as error detection)?
