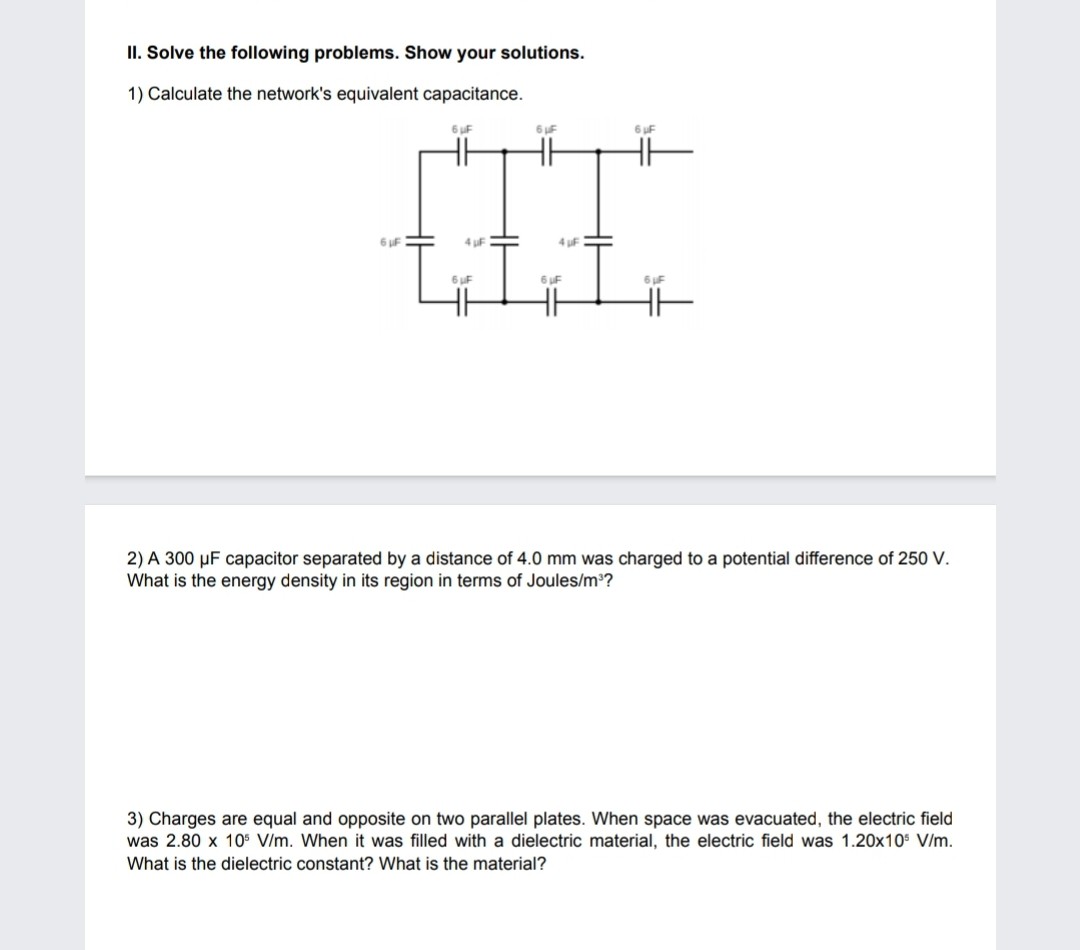

II. Solve the following problems. Show your solutions. 1) Calculate the network's equivalent capacitance. 2) A 300 ?F capacitor separated by a distance of 4.0 mm was charged to a potential difference of 250 V. What is the energy density in its region in terms of Joules/m³? 3) Charges are equal and opposite on two parallel plates. When space was evacuated, the electric field was 2.80 x 10? V/m. When it was filled with a dielectric material, the electric field was 1.20x10? V/m. What is the dielectric constant? What is the material?
Added by Noah G.
Close
Step 1
2) The energy density (u) in a capacitor is given by the formula u = 1/2 * ε * E^2, where ε is the permittivity of free space (8.85 x 10^-12 F/m) and E is the electric field strength (V/d). The electric field strength can be calculated as E = V/d = 250V / 4.0mm Show more…
Show all steps
Your feedback will help us improve your experience
Kenny Mesadieu and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Q.3 Determine the net capacitance C of each network of capacitors shown below: Assume that C1 = 1.0 pF, C2 = 2.0 pF, C3 = 4.0 pF and C4 = 5.0 pF. Find the charge on each capacitor; assuming there is a potential difference of 12.0 V across each network:
Michael S.

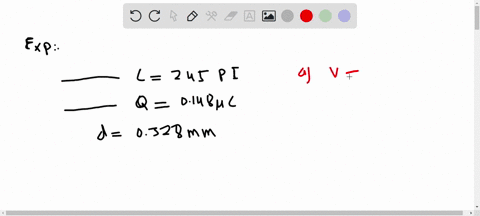

Consider a parallel plate capacitor (air-filled) with a surface area of 225 cm² and a charge of 1.50 µC (q) on each of its plates. The plate separation distance is 1.0 cm. What is the capacitance of this system? What is the potential difference across the capacitor? How much energy is stored in the capacitor? If the capacitor were filled with dielectric material with a relative permittivity of 3.3 (while maintaining the same amount of charge on the plates), what is the potential difference between the conductors? How much charge would be stored in the dielectric material, with the same potential difference as in part (D)?
Hafiz S.

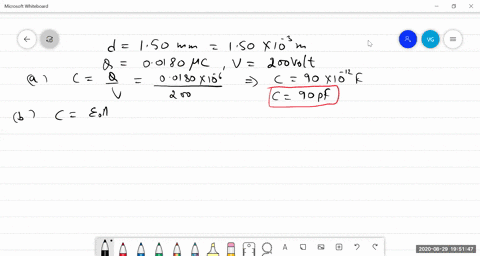

24.26. An air capacitor is made from two flat parallel plates 1.50 $\mathrm{mm}$ apart. The magnitude of charge on each plate is 0.0180$\mu \mathrm{C}$ when the potential difference is 200 $\mathrm{V}$ . (a) What is the capacitance? (b) What is the area of each plate? (c) What maximum voltage can be applied without dielectric breakdown? (Dielectric breakdown for air occurs at an electric-field strength of $3.0 \times 10^{6} \mathrm{V} / \mathrm{m}$ . (d) When the charge is 0.0180$\mu \mathrm{C}$ , what total energy is stored?
