Question

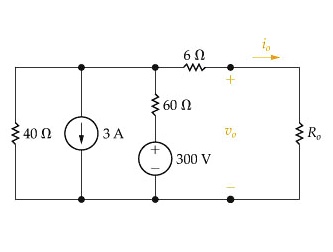

6 ? + io 60 ? 40 ? 3 A vo Ro 300 V

          6 ?
+
io
60 ?
40 ?
3 A
vo
Ro
300 V

6 ?
+
io
60 ?
40 ?
3 A
vo
Ro
300 V

Added by Susan L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/16/2023

Step 1

- The 40Ω resistor is in parallel with the 3A current source. - The 60Ω resistor is in series with the 6Ω resistor and the load resistor \( R_0 \). Show more…

Show all steps

lock

Thanks for your feedback!

Calculate the power delivered to Ro=10̦ in the circuit. Calculate the power delivered to Ro=15̦. Calculate the power delivered to Ro=22̦. Calculate the power delivered to Ro=33̦. Calculate the power delivered to Ro=47̦. Calculate the power delivered to Ro=68̦. Plot the power delivered to Ro versus the resistance Ro. At what value of Ro is the power delivered to Ro a maximum? Use your results from the previous parts.
