Determine the total power dissipated through the circuit...

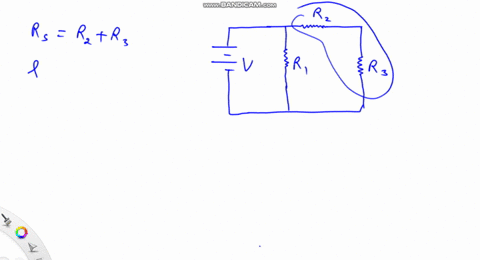

Determine the total power dissipated through the circuit shown above in terms of $V, R_{t}, R_{z},$ and $R_{3}$ . (A) $\frac{V^{2}}{R_{1}+R_{2}+R_{3}}$ (B) $\frac{R_{1}+R_{2}+R_{3}}{V^{2}}$ (C) $\frac{R_{1}\left(R_{2}+R_{3}\right)}{V^{2}\left(R_{1}+R_{2}+R_{3}\right)}$ (D) $\frac{V^{2}\left(R_{1}+R_{2}+R_{3}\right)}{R_{1}\left(R_{2}+R_{3}\right)}$

Determine the total power dissipated through the circuit shown above in terms of $V, R_{t}, R_{z},$ and $R_{3}$ .
(A) $\frac{V^{2}}{R_{1}+R_{2}+R_{3}}$
(B) $\frac{R_{1}+R_{2}+R_{3}}{V^{2}}$
(C) $\frac{R_{1}\left(R_{2}+R_{3}\right)}{V^{2}\left(R_{1}+R_{2}+R_{3}\right)}$
(D) $\frac{V^{2}\left(R_{1}+R_{2}+R_{3}\right)}{R_{1}\left(R_{2}+R_{3}\right)}$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Equivalent Resistance

Equivalent resistance is the concept of replacing a network of resistors with a single resistance that exhibits the same electrical behavior. This simplification is key for computing overall circuit properties, such as total current and power dissipation, particularly in circuits involving a mix of series and parallel connections.

Power Dissipation in Resistive Elements

Power dissipation refers to the conversion of electrical energy into thermal energy in resistive components and is typically calculated using formulas like P = V²/R or P = I²R. This concept is critical for designing circuits that operate safely and efficiently, ensuring that components do not exceed their thermal limits.

Ohm's Law

Ohm's Law is a fundamental principle that relates voltage, current, and resistance (V = IR) in an electrical circuit. It serves as the basis for analyzing how electrical energy is distributed, aiding in the calculation of current flow and voltage drops across various components.

Series and Parallel Resistor Combinations

Understanding how resistors combine, whether in series or in parallel, is essential for determining the overall resistance of a circuit. This concept is pivotal when simplifying complex circuits into equivalent resistance, allowing for easier analysis of current distribution and voltage allocation.
