Calculate the strain energy of the beam in the figure in terms of the applied force P, applied moment $M_0$, the length L, modulus E, and area moment of inertia I. Then use Castigliano's theorem to calculate the deflection of the tip. $P$ $M_0$
Added by Phillip E.
Close
Step 1
Step 1: The strain energy $U$ of a beam subjected to bending is given by: $$U = \int_0^L \frac{M^2(x)}{2EI} dx$$ where $M(x)$ is the bending moment at a distance $x$ from the fixed end. Show more…
Show all steps
Your feedback will help us improve your experience
Penny Riley and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A cantilever beam AB of length L=12 m is subjected to a concentrated load P = 35 kN anda couple M0= 15 kN-m acting at the free end (see figure). Using Moment Area Theorems,obtain the angle of rotation θB and the deflection δB at end B. Young’s Modulus E = 200 GPa and the Moment of Inertia I=105x10^6 mm^4
Penny R.
Determine the bending strain energy in the cantilevered beam. Solve the problem two ways. $(a)$ Apply Eq. $14-17$. ( $b$ ) The load $w d x$ acting on a segment $d x$ of the beam is displaced a distance $y,$ where $y=w\left(-x^{4}+4 L^{3} x-3 L^{4}\right) /(24 E I),$ the equation of the elastic curve. Hence the internal strain energy in the differential segment $d x$ of the beam is equal to the external work, i.e., $d U_{i}=\frac{1}{2}(w d x)(-y) .$ Integrate this equation to obtain the total strain energy in the beam. $E I$ is constant.

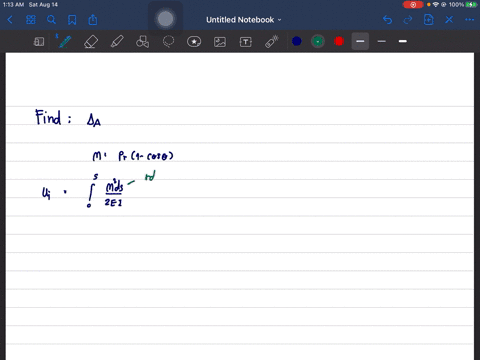

The rod has a circular cross section with a moment of inertia $I$. If a vertical force $\mathbf{P}$ is applied at $A,$ determine the vertical displacement at this point. Only consider the strain energy due to bending. The modulus of elasticity is $E$.
