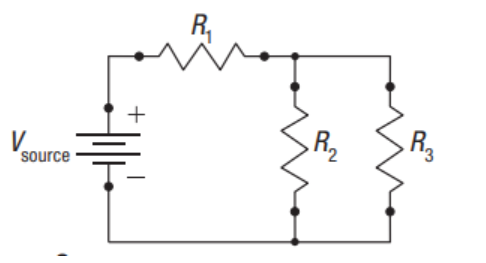

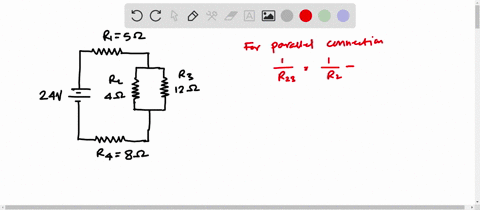

Vsource R1 R2 R3
Added by Naomi A.
Close
Step 1
Step 1: Calculate the total resistance of the parallel connection of R2 and R3 using the formula: 1 / (1/R2 + 1/R3) Show more…
Show all steps
Your feedback will help us improve your experience
Ivan Kochetkov and 64 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Prabhu R.

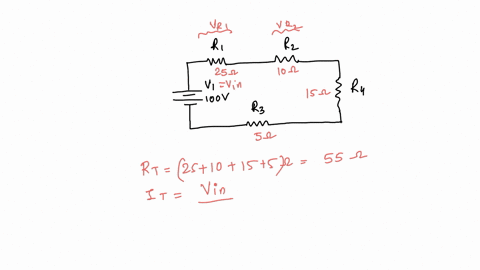

For the following series circuit, determine the Total Resistance, Total Current, and Voltage across each resistor. R1 = 25 Ohm R2 = 10 Ohm V1 = 100 V R4 = 15 Ohm R3 = 5 Ohm RT = IT = VR1 = VR2 = VR3 = VR4 =
Aparna S.
Simplify the circuit below and determine the total resistance, RT, and the total current, IT from the power supply. Assume R1 = 5Ω, R2 = 7Ω, and R3 = 9Ω (Show the working steps).
