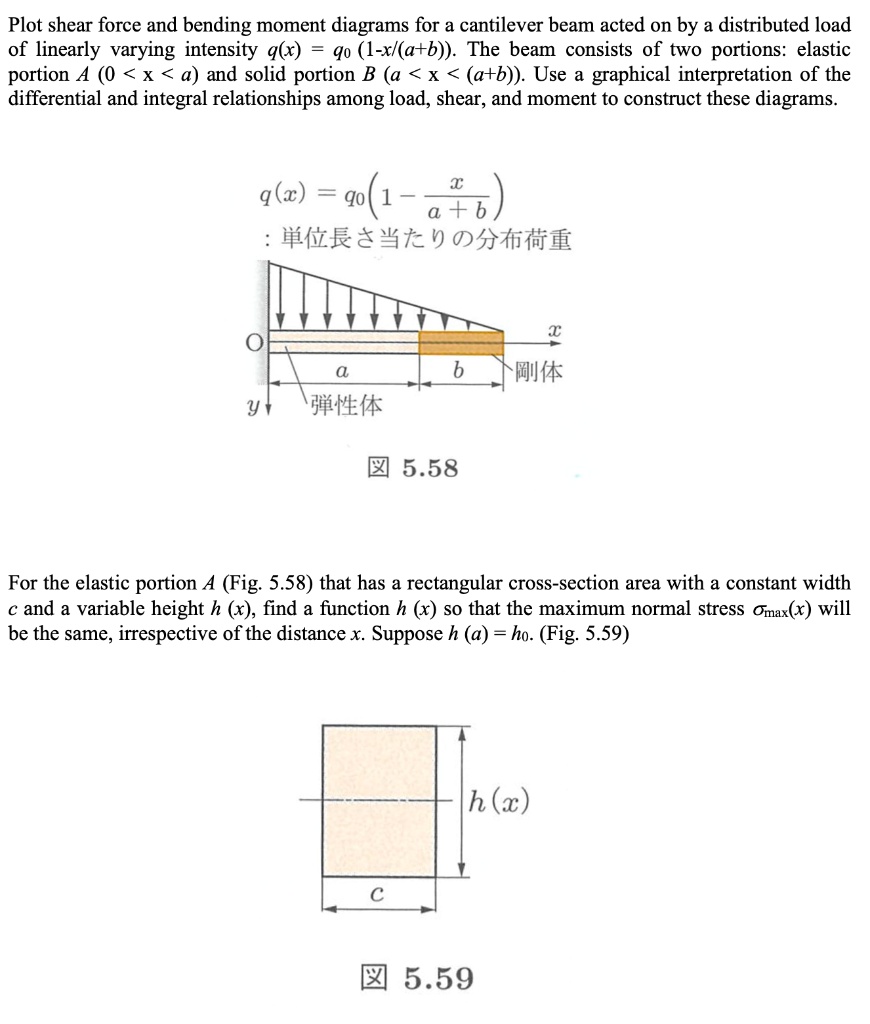

Plot shear force and bending moment diagrams for a cantilever beam acted on by a distributed loa

Question

Adi S · Answer

The vertical equilibrium. That is. Sigma of FY. Which is equal to zero and R1 and with R2 minus

Madhur L · Answer

hi let&#x27;s find the maximum stress so here m equal to 1600 lb feet and here m by i equal to sigma

Kritika Mishra · Answer

In this question we are given, this is a beam, this is the loading, the value of loading is 1 .6

Carson Merrill · Answer

So let&#x27;s consider here. We have a thousand pound per foot over this whole thing. And we have 100

Sri K · Answer

Given in the figure taking reaction force as R a and R b balancing the Forces we get R a plus R
