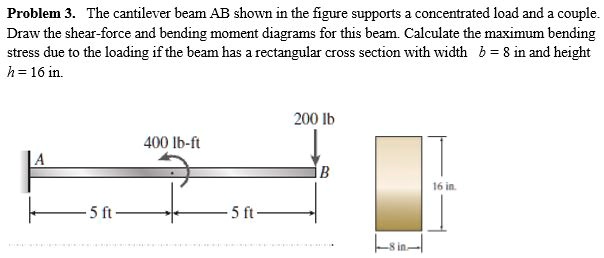

Problem 3. The cantilever beam AB shown in the figure supports a concentrated load and a couple. Draw the shear-force and bending moment diagrams for this beam. Calculate the maximum bending stress due to the loading if the beam has a rectangular cross section with width b = 8 in and height h = 16 in. 200 lb 400 lb-ft A B 16 in. 5 ft 5 ft 8 in.
Added by Cristian P.
Close
Step 1
- Since the beam is cantilevered, the reactions at point A will include a vertical reaction force \( R_A \), a horizontal reaction force (which is zero in this case as there are no horizontal loads), and a moment \( M_A \). Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Draw the shear and bending-moment diagrams for the beam and loading shown.
Madhur L.

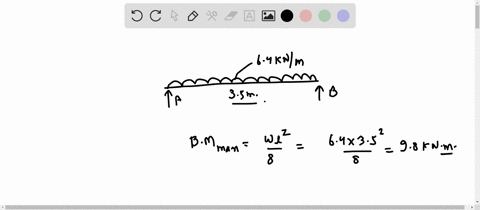

Q1 A simply supported wood beam AB with span length L=3.5 m carries a uniform load of intensity W = 6.4 kN/m (see figure). Calculate the maximum normal stress due to the bending moment if the beam has a rectangular cross section with width b = 140 mm and height h = 240 mm.
