Closed-loop transfer function of a unity feedback system is given by T(s) = n(s)/d(s), n(s) = 10(s + 1), d(s) = s^2 + 9s + 10. Determine the (open) loop transfer function L(s).
Added by Travis R.
Step 1
The closed loop transfer function T(s) is given by: T(s) = n(s)/d(s) = 10(s + 1)/(s^2 + 9s + 10) Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 53 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The closed-loop transfer function for the unity-feedback system below is given as C(s)/R(s) = (s^2 + 1)/(s^3 + s^2 + 1). Find G(s). Select one: a. G(s) b. G(s) c. G(s) d. G(s)
Sri K.
The steady-state error to a ramp input for a unity feedback system with an open-loop transfer function is (Given k=2): s(s+1).
Shaiju T.

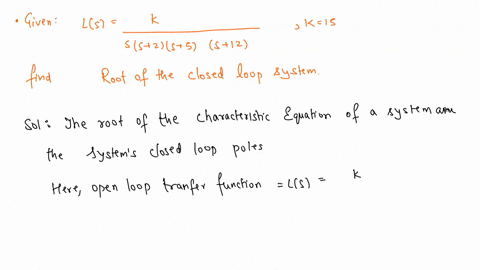

A unity feedback system has a loop transfer function L(s) = K / [s(s + 2)(s + 5)(s + 12)] where K = 15. Find the roots of the closed-loop system's characteristic equation.
