Question

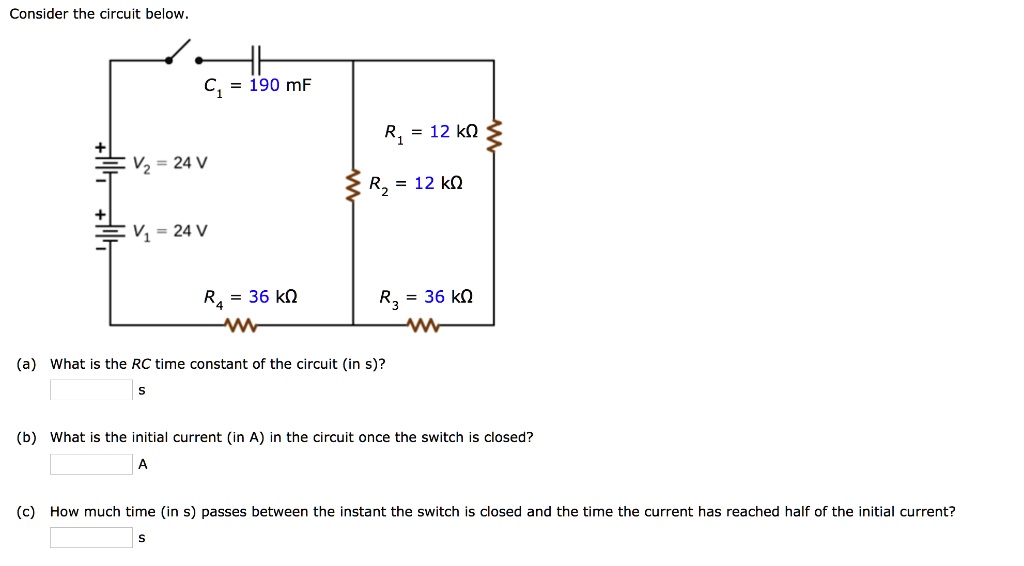

Consider the circuit below. C1 = 190 mF R1 = 12 k? V2 = 24 V R2 = 12 k? V1 = 24 V R4 = 36 k? R3 = 36 k? (a) What is the RC time constant of the circuit (in s)? (b) What is the initial current (in A) in the circuit once the switch is closed? (c) How much time (in s) passes between the instant the switch is closed and the time the current has reached half of the initial current?

          Consider the circuit below.
C1 = 190 mF
R1 = 12 k?
V2 = 24 V
R2 = 12 k?
V1 = 24 V
R4 = 36 k?
R3 = 36 k?
(a) What is the RC time constant of the circuit (in s)?
(b) What is the initial current (in A) in the circuit once the switch is closed?
(c) How much time (in s) passes between the instant the switch is closed and the time the current has reached half of the initial current?

Consider the circuit below.
C1 = 190 mF
R1 = 12 k?
V2 = 24 V
R2 = 12 k?
V1 = 24 V
R4 = 36 k?
R3 = 36 k?
(a) What is the RC time constant of the circuit (in s)?
(b) What is the initial current (in A) in the circuit once the switch is closed?
(c) How much time (in s) passes between the instant the switch is closed and the time the current has reached half of the initial current?

Added by Kevin L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

04/29/2024

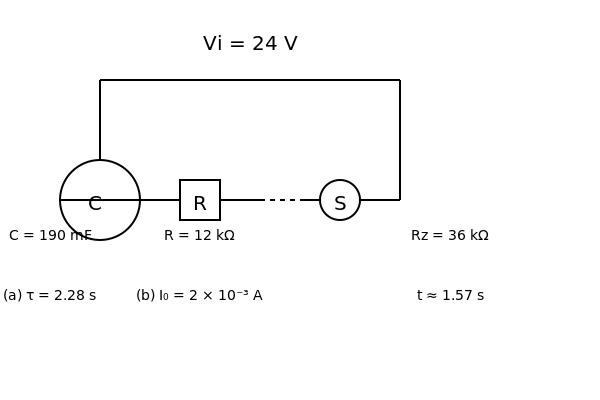

Step 1

In this case, R = 12 kΩ and C = 190 mF. So, the RC time constant is: τ = RC = (12 × 10^3 Ω) × (190 × 10^-6 F) τ = 2.28 s Show more…

Show all steps

Thanks for your feedback!

Consider the circuit below: C1 = 190 mF R1 = 12 kΩ V2 = 24 V R2 = 12 kΩ V1 = 24 V R4 = 36 kΩ R3 = 36 kΩ (a) What is the RC time constant of the circuit (in s)? (b) What is the initial current (in A) in the circuit once the switch is closed? (c) How much time (in s) passes between the instant the switch is closed and the time the current has reached half of the initial current?
