Consider the circuit below. (a) What is the R C time...

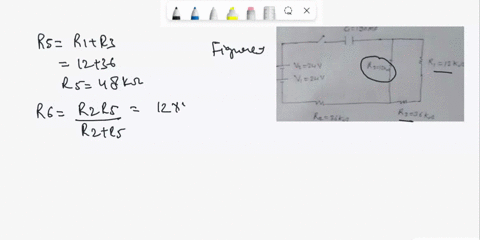

Consider the circuit below. (a) What is the $R C$ time constant of the circuit? (b) What is the initial current in the circuit once the switch is closed? (c) How much time passes between the instant the switch is closed and the time the current has reached half of the initial current?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Exponential Decay in RC Circuits

The charging (or discharging) process of an RC circuit follows an exponential behavior described by a decay function. For example, the current decreases exponentially over time as the capacitor charges. This characteristic decay, modeled by an equation of the form I(t) = I0 exp(-t/RC), allows one to determine specific time intervals such as the time needed for the current to drop to a given fraction of its initial value using logarithmic calculations.

RC Time Constant

This is a fundamental concept in analyzing RC circuits, defined as the product of the resistance (R) and the capacitance (C). The time constant (often denoted by ?) characterizes how quickly a capacitor charges or discharges; after a duration equal to ?, the capacitor will have reached about 63.2% of its final voltage during charging or dropped to about 36.8% of its initial voltage during discharging.

Capacitor Charging and Transient Response

In an RC circuit, when the switch is closed, the capacitor begins its charging process. Initially, the uncharged capacitor behaves like a short circuit, allowing a maximum or initial current to flow, which is determined by the applied voltage and the resistance. This behavior sets the stage for analyzing how the circuit transitions from its initial state to a steady state over time.
