Consider the circuit given in the figure. If the current crossing the resistance R1 is 2A, Calculate, a) Resistance of the R1 b) Current in 4 ohm c) Power dissipated in the R1
Added by Amber C.
Step 1
In this case, we know that the current (I) through R1 is 2A and the voltage (V) across R1 is 10V (since it is directly connected to the battery). So, the resistance of R1 can be calculated as follows: R1 = V/I = 10V/2A = 5 ohms Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
(a) Find the equivalent resistance in the circuit shown in Fig. $17.47 .$ (b) What is the total current in the circuit? (c) What is the current through $R_{1} ?$ (d) What is the current through $R_{2}$ ?
Basic Electricity
Parallel Circuits

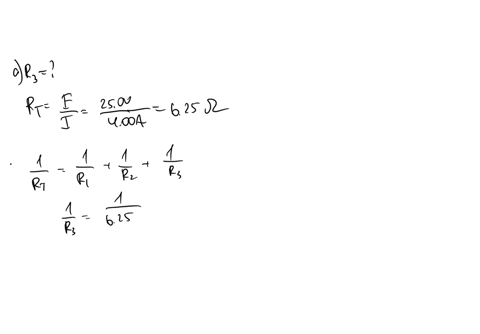

Find the resistance of R3 in the circuit. (b) What is the current through R1? (c) What is the current through R3?
