1. Consider the circuit shown in Fig. 1 The diode is ideal, and the power supplies of the op-amp are ±5V. a) Plot $V_{out}$ for this circuit b) What is the output current of the opamp $I_o$ when $V_{IN} = 1V$? c) What is the output current of the opamp $I_o$ when $V_{IN} = -1V$? $R_2 = 2 k\Omega$ $R_1 = 1 k\Omega$ $V_{IN} = 1 - sin(\omega t)$ $R_L = 1 k\Omega$

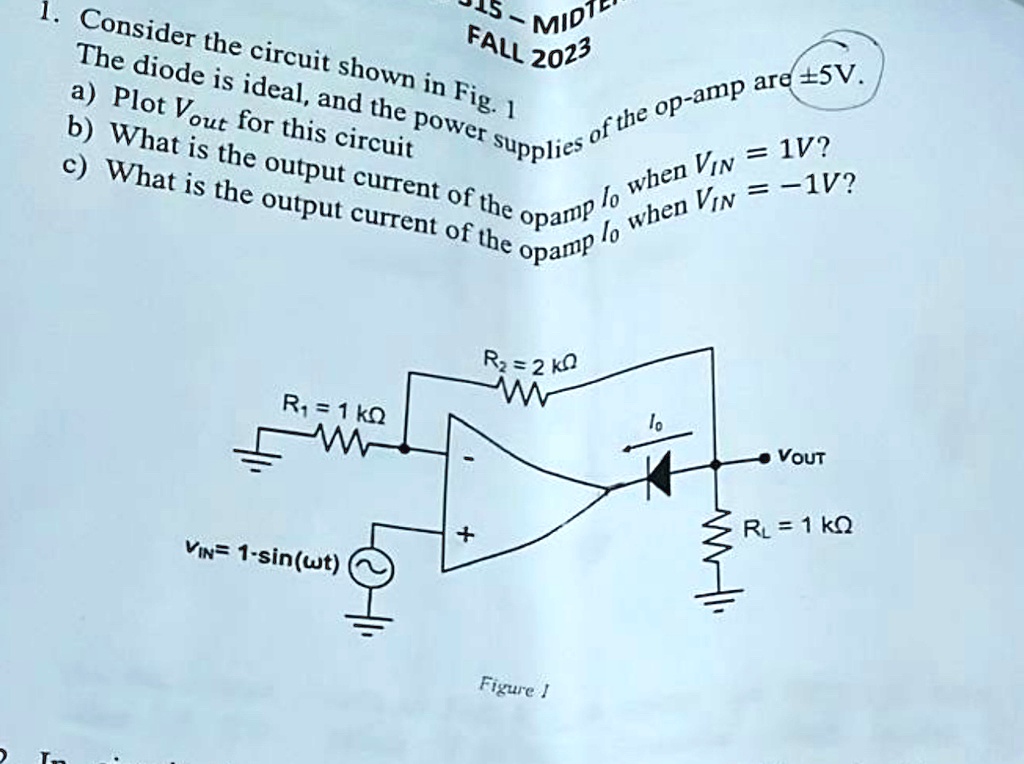

          1. Consider the circuit shown in Fig. 1
The diode is ideal, and the power supplies of the op-amp are ±5V.
a) Plot $V_{out}$ for this circuit
b) What is the output current of the opamp $I_o$ when $V_{IN} = 1V$?
c) What is the output current of the opamp $I_o$ when $V_{IN} = -1V$?
$R_2 = 2 k\Omega$
$R_1 = 1 k\Omega$
$V_{IN} = 1 - sin(\omega t)$
$R_L = 1 k\Omega$

1. Consider the circuit shown in Fig. 1
The diode is ideal, and the power supplies of the op-amp are ±5V.
a) Plot Vout for this circuit
b) What is the output current of the opamp Io when VIN = 1V?
c) What is the output current of the opamp Io when VIN = -1V?
R2 = 2 kΩ
R1 = 1 kΩ
VIN = 1 - sin(ω t)
RL = 1 kΩ

Added by Michael B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

10/18/2023

Step 1

The op-amp is configured as an inverting amplifier with a gain of -1. The input voltage is given as VIN = 1 - sin(wt). The diode is ideal, meaning it conducts current only in one direction. Show more…

Show all steps

Thanks for your feedback!

Consider the circuit shown in Fig. 1 The diode is ideal, and the power. 1 a) Plot V_(out ) for this circuit b) What is the output current of the supplies of I_(0) when V_(IN)=1V ? c) What is the output current of the opamp I_(0) when V_(IN)=-1V ? Figure I FALL2023 a Plot Vout for this circuit R=2K WW R=1kQ WW VOUT R=1kQ VIN=1-sin(wt) Figure1
