Carryln a0 Carryln ALU0 Result0 bo CarryOut a1 Carryln ALU1 Result1 b1 CarryOut a2 Carryln ALU2 Result2 b2 CarryOut a31- Carryln ALU31 Result31 b31-
Added by Kimberly B.
Close
Step 1
First, we need to understand what causes an overflow in an addition operation. In a 32-bit addition, an overflow occurs when the sum of two positive numbers is negative or when the sum of two negative numbers is positive. Show more…
Show all steps
Your feedback will help us improve your experience
Derrick Danso and 54 other AP CS educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

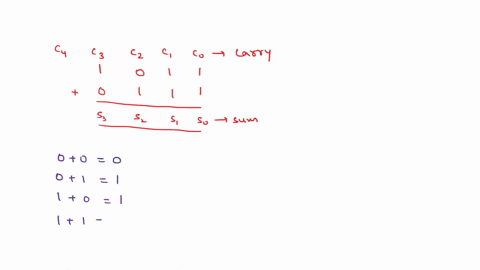

In the binary addition below, s0, s1, s2, s3, c0, c1, c2, c3, and c4 represent sum bits and carry bits at each stage of the addition algorithm. c4 c3 c2 c1 c0 carry 1 0 1 1 + 0 1 1 1 s3 s2 s1 s0 sum a. What is the value of each sum bit and carry bit? b. Did signed overflow occur? c. Did unsigned overflow occur?
Vivek K.

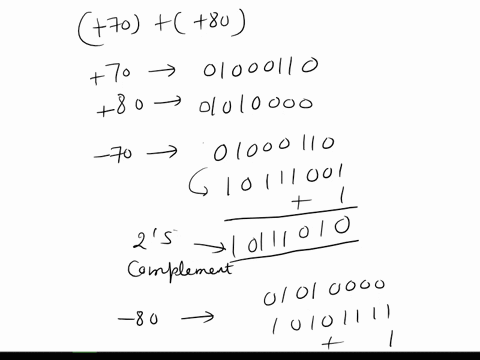

Perform the arithmetic operations (+70) + (+80) and (-70) + (-80) with binary numbers in signed-2's complement representation. Use eight bits to accommodate each number together with its sign. Show that overflow occurs in both cases, that the last two carries are unequal, and that there is a sign reversal.
Madhur L.
Given two 4-bit BCD inputs A[3..0] and B[3..0], design a circuit to add A and B using Carry Look- Ahead Adders. Have separate block circuits for Full adder and CLA (4-bit). Moreover, design an error detection circuit that verifies whether the sum result is valid in BCD. This detector should then correct the result if an error is detected
Sri K.
